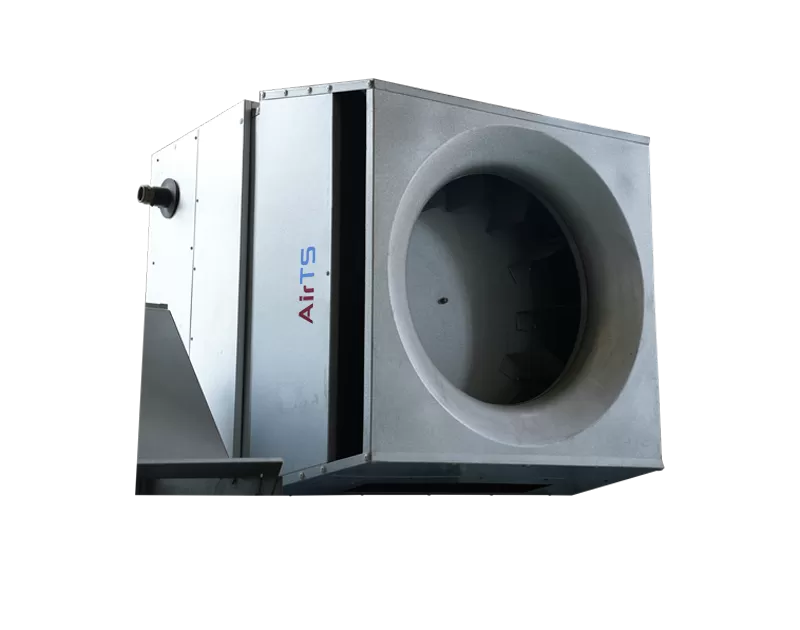

Side-mounted Heating Unit

Applications: ideal for high and large space (H: 4-30m) that needs heating with horizontal supply air distance ≥26m.

Model: AirTS-SD-I, AirTS-SD-II

Function: heating

Hot source: hot water (40-90℃)/steam (<120℃)

Control mode: wireless control, variable frequency, auto monitoring

Quality Assurance

Stable and Durable.

After-sales Service

24H Online.

Inquire Now Next Product

Working Principle Specification Download Inquire Now

Working Principle

When hot water or steam passes the equipment, the efficient heat exchanger in the equipment is used to achieve rapid heating of the air.

The air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.

Features

Use an air suction axial fan to efficiently recover heat from the top, reducing roof heat loss and addressing thermal drift issues during winter building heating for energy-saving benefits.

Adjusting wind speed and air outlet angle allows for comfortable heating in the working area without creating a sensation of wind.

Aligning the aluminum foil fins of the air exchanger with the airflow direction successfully resolves condensate water leakage.

Efficient heat exchange enables quick warming of the airflow.

Large: the devices in the space are arranged uniformly with even heat distribution

Space: decrease the temp of roof and surrounding walls,decrease the temp difference with the outside, and reduce heat loss through the top and around

Long air supply distance, high hot air volume

Function: heating

Functions

Fall prevention warning monitoring

Working data collection and analysis

Variable air volume and water volume

Wireless intelligent control

Light breeze air supply

Frost protection

Support full linkage control

Side-mounted installation

Specification

Side-mounted Heating Unit

Side-mounted Heating Unit
Model		AirTS-SD-I	AirTS-SD-II
Rotating speed of fan	r/min	0～900	0～860
Standard circulating air volume	m³/h	0～6700	0～9900
Voltage	V	380±5%	380±5%
Electric power	kW	0～0.85	0～1.80
Current	A	0～1.65	0~3.60
Horizontal supply air distance	m	＜17	＜26
Control mode		VAV stepless regulation	VAV stepless regulation
Noise	dB	<60	<60

Side-mounted Heating Unit

Dimension
Model		AirTS-SD-I	AirTS-SD-II
A	mm	900	1100
B	mm	1120	1280
C	mm	650	700
E	mm	360	515
F	mm	177	147
J	mm	143	160
L	mm	210	210
M (internal thread)	mm	DN32	DN40
P	mm	760	700
Q	mm	765	935
Weight	kg	130	185
Water volume	L	5.8	9.8
