Advantages

Product Advantages – Fresh Air Roof Heat Recovery Gas Heating Unit (AirTS-GFT)

1. Integrated Heating & Fresh Air Solution
Combines space heating and fresh air supply in one rooftop unit. It introduces outdoor fresh air while efficiently meeting the heating demands of large and high spaces (4–30m), improving indoor air quality and comfort simultaneously.

2. High Thermal Efficiency
Adopts direct natural gas combustion in the gas coil to heat air directly, reducing intermediate heat loss and achieving high heat exchange efficiency. Fast temperature rise ensures rapid warming even in cold environments.

3. Energy Saving Operation
Stepless heating capacity regulation and variable frequency control allow precise output adjustment based on real-time demand, reducing unnecessary energy consumption and optimizing gas usage.

4. Instant Start & Rapid Response
Instant-on operation enables quick system start-up without long preheating time, ensuring immediate heat supply when needed.

5. Heat Recovery Design
Built-in heat recovery structure maximizes energy utilization by reclaiming exhaust heat, improving overall system efficiency and lowering operating costs.

6. Rooftop Installation – Space Saving
Installed on the roof to save valuable indoor space. Easy installation and simplified duct connection make it suitable for factories, warehouses, gymnasiums, logistics centers, exhibition halls, and other large-span buildings.

7. Anti-Freeze Protection
Equipped with anti-freeze protection to ensure stable operation in low-temperature climates and prevent system damage.

8. Environmental & Clean Combustion
Natural gas as the heat source ensures sufficient combustion, lower emissions, and environmentally friendly performance that complies with modern energy standards.

9. Intelligent & Flexible Control
Supports wireless control, automatic monitoring, and variable frequency operation. Real-time system monitoring improves operational safety and reduces maintenance workload.

10. Multiple Safety Protections
Designed with multiple security protection systems to ensure safe and reliable operation, including combustion protection, temperature protection, and system fault alarms.

Upgrade Your Large-Space Heating System Today – Get a Customized Solution for Your Project.

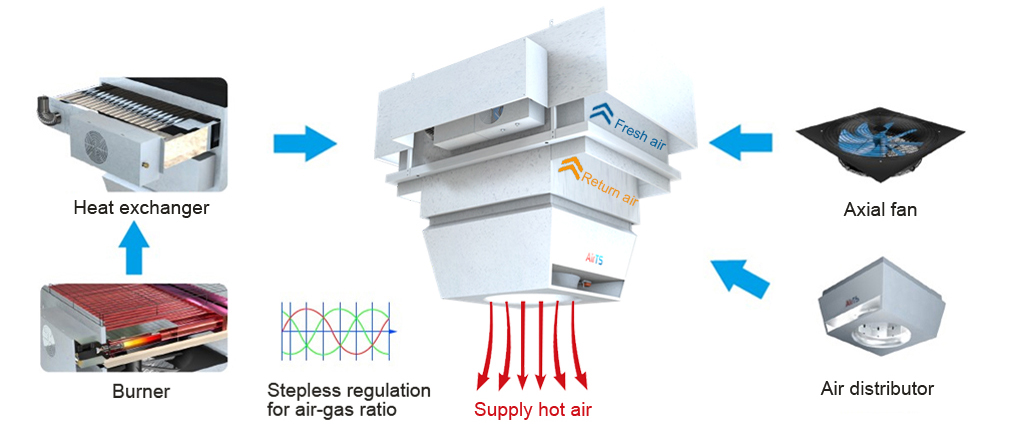

Working Principle

Natural gas mixed with air burned through burner, and the heat passes through heat exchanger.

The axial fan provides power to top side, make the return air take away the heat through heat exchager.

After two pressure boosts and silencers, hot air sent to the heating area in the floor.

Fresh Air Roof Heat Recovery Gas Heating Unit

Functions & features

Real-time monitoring

Multiple guarantees, safe and reliable

Low investment, easy installation

Accurate energy saving

Fall prevention warning and monitoring

Gas consumption accurately proportioned to air volume

Roof installation

Support pure fresh air

Technical Comparison

System configuration of gas heating unit

1. Energy source: natural gas, electricity

2. Civil engineering requirements: none

3. Personnel requirements: unattended system

4. System configuration: gas heating unit

System configuration of traditional heating unit

1. Energy source: water, electricity, natural gas

2. Civil engineering requirements: boiler room or heat exchange station

3. Personnel requirements: furnace worker, maintenance worker

4. System configuration: gas boiler or thermal power plant, circulating water pump, primary and secondary circulating water network, heat exchanger, boiler room or heat exchange station, water tank, etc.

The gas heating system as follows

A. Low initial investment - 20% lower initial investment compared to traditional methods

B. Low running costs - direct heating, waterless system saves 40% of operating costs

C. Low maintenance costs - simple system and low failure rate

The water heating system as follows

A. High initial investment - complex system and many equipment

B. High running costs - 30~40% of non-heating ineffective losses

C. High maintenance costs - more equipment, more failure points, high failure rate

Advantage of Heat Recovery Gas Heating Unit

1. Thermal conversion efficiency is above 96%.

2. Deliver heat directly and possess the capability to recover heat from the top of the space, thereby reducing temperature gradients in the space.

3. Stepless regulation of heating capacity (automatically adjust gas flow according to temperature requirement) and accurate temperature control.

4. To meet the heating requirements of the same project, the quantity of equipment is half compared with gas radiation unit.

5. The air volume is accurately proportioned according to the gas flow (one-thousandth fine adjustment) to ensure full combustion and environmentally friendly emissions.

Specification

Fresh Air/Roof Heat Recovery Gas Direct-Fired Heating Unit

Fresh Air/Roof Heat Recovery Gas Heating Unit
Model		AirTS-GFT
Rotating speed of fan	r/min	0~860
Standard circulating air volume	m³/h	0~10000
Voltage	V	380±5%
Electric power	kW	0~1.91
Current	A	0~4.2
Suitable installation height	m	4~17
Heating capacity	kW	0~56.18
Air consumption	m³/h	5.21 (Working condition)/ 5.64 (Standard condition)
Supply gas pressure	Kpa	5~10
Working pressure	Kpa	2
Thermal efficiency	η	99.90%
Control mode		Stepless regulation of variable gas volume and wind speed
Noise	dB	<60

Fresh Air/Roof Heat Recovery Gas Direct-Fired Heating Unit

Dimension
Model		AirTS-GFT
A	mm	2000
B	mm	1760
C	mm	1250
D	mm	1720
E	mm	700
F	mm	205
G	mm	855
H	mm	1230
J	mm	220
Inlet air pipe	mm	DN20 (external thread)
Exhaust air pipe	mm	DN80
Weight	kg	351
• Notes: The above sizes and weight are corresponding to single burner(54.75kW). • There are optional items for dual fuel burner (109.5kW) and three slot burner (164.25kW). • It is recommended to use a dual fuel burner or three-slot burner configuration in cold areas.
• Each additional set of burners: Height B increase: 400mm Weight increase: 83kg Gas consumption increase: 5.21m³/h Power consumption increase: 75W

Application Scenarios

Application Scenarios – AirTS-GFT Fresh Air Roof Heat Recovery Gas Heating Unit

Designed for high and large spaces (4–30m), the AirTS-GFT fresh air roof unit is ideal for:

Industrial Plants & Workshops – Provides efficient heating and continuous fresh air for manufacturing environments.
Warehouses & Logistics Centers – Ensures stable indoor temperature and ventilation for large storage spaces.
Gymnasiums & Sports Halls – Delivers comfortable heating with fresh air circulation for large crowd areas.
Exhibition Centers & Convention Halls – Maintains indoor comfort during large events and peak occupancy.
Aircraft Hangars & Large Garages – Suitable for super-high spaces requiring rapid heating.
Commercial Buildings & Supermarkets – Improves indoor air quality while meeting heating demands.
