Applications: ideal for high and large space (H: 4-30m) that needs cooling, heating and fresh air (variable air volume control, running with full air supply or mixed air supply)
Model: AirTS-FK-I, AirTS-FK-II
Function: cooling, heating, fresh air supply
Cold and hot source: cold water (7-12℃)/hot water (40-90℃)
Control mode: wireless control, variable frequency, auto monitoring
Quality Assurance
Stable and Durable.
After-sales Service
24H Online.
Working Principle
When hot/cold water or stream passes the equipment, the efficient heat exchanger in the equipment is used to achieve rapid heating/cooling of the air.
The large wind pressure axial flow fan installed on the top is used to forcedly press the hot/cold air down. Then the air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.
Features
By adjusting wind speed and air outlet angle, it achieves comfortable cooling or heating environment
Supply air angle stepless regulation
Utilize axial fan to efficiently recover heat from the top, reducing heat loss from the roof, achieving energy-saving effects
The fan is installed below the air exchanger to control noise level (<60 dB)
The special designed square-shaped type air exchanger prevent the leakage of condensate water
The complex designed air exchanger, 1.5 times exchange area than others, takes significant heating/cooling efficiency
Long air supply distance, high hot/cold air volume
4 sides return air structure, installed on the roof, require smaller installation space
Function: cooling, heating, fresh air supply
Functions
Fall prevention warning monitoring
Working data collection and analysis
Variable air volume and water volume
Wireless intelligent control
Filter net self-cleaning
Frost protection
Fresh air
Light breeze air supply

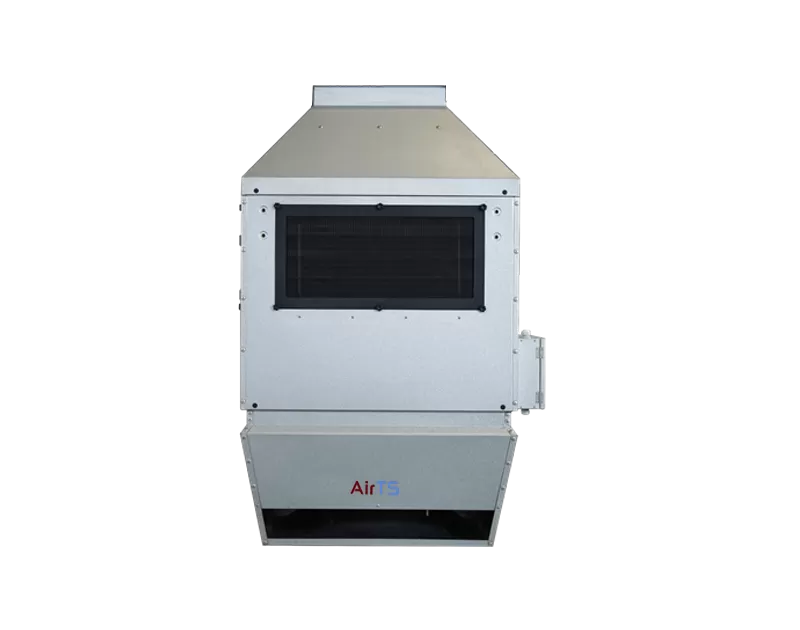

AirTS top unit
High and large space air conditioner lifted on the roof
It achieves hot/cold air from the air exchanger in the equipment
It distributes the hot/cold air by means of efficient air distributor, which eliminates the undesirable indoor temp layers
Comfortable cooling or heating environment without wind feeling sense
Specification
| Fresh Air Conditioning Unit | |||
| Model | AirTS-FK-I | AirTS-FK-II | |
| Rotating speed of fan | r/min | 0～900 | 0～860 |
| Standard circulating air volume | m³/h | 0～6900 | 0～10100 |
| Voltage | V | 380±5% | 380±5% |
| Electric power | kW | 0～0.85 | 0～1.80 |
| Current | A | 0～1.65 | 0~3.60 |
| Suitable installation height | m | 4~13 | 4~21 |
| Control mode | VAV stepless regulation | VAV stepless regulation | |
| Noise | dB | <60 | <60 |
| Dimension | |||
| Model | AirTS-FK-I | AirTS-FK-II | |
| A | mm | 900 | 1100 |
| B | mm | 1590 | 1897 |
| C | mm | 735 | 920 |
| D | mm | 1230 | 1442 |
| E | mm | 100 | 100 |
| G | mm | 480 | 568 |
| H | mm | 765 | 935 |
| J | mm | 180 | 220 |
| K | mm | 230 | 240 |
| L | mm | 160 | 260 |
| M (internal thread) | mm | DN40 | DN50 |
| N (external thread) | mm | DN25 | DN32 |
| O | mm | 50 | 50 |
| P | mm | 20 | 20 |
| Q | mm | 505 | 605 |
| R | mm | 445 | 545 |
| S | mm | 120 | 120 |
| Weight | kg | 183 | 266 |
| Water volume | L | 5.8 | 9.8 |
Applications of Fresh Air Conditioning Unit
The AirTS-FK Fresh Air Conditioning Unit is designed for high and large spaces that require indoor temperature control, air circulation and continuous fresh air supply.
Industrial Workshops
Provides heating, cooling and fresh air for automotive, machinery, electronics and general manufacturing workshops.
Warehouses and Logistics Centers
Improves air circulation and reduces temperature differences in high-bay warehouses, distribution centers and loading areas.
Railway and Transportation Buildings
Suitable for railway stations, maintenance depots, airport terminals and other large transportation facilities.
Exhibition and Commercial Halls
Maintains a comfortable indoor environment in exhibition centers, shopping halls, showrooms and convention spaces.
Sports and Public Buildings
Supports temperature control and ventilation in gymnasiums, indoor stadiums, auditoriums and multipurpose halls.
Food and Packaging Facilities
Provides controlled heating, cooling and fresh air for food processing, printing, paper and packaging workshops.
The Fresh Air HVAC Unit can operate with full fresh air or mixed air according to the building’s ventilation requirements.
| Model | Recommended Installation Height | Maximum Air Volume | Suitable Projects |
|---|---|---|---|
| AirTS-FK-I | 4–13 m | 6,900 m³/h | Medium-height workshops, warehouses and commercial halls |
| AirTS-FK-II | 4–21 m | 10,100 m³/h | Taller buildings and larger areas requiring greater air circulation |
Model selection should not be based on building height alone. Cooling and heating loads, fresh air demand, occupancy, local climate and available water temperature must also be considered.
For installation heights above 21 m or buildings with complex layouts, please provide project drawings for a customized Fresh Air HVAC system design.
To select the appropriate fresh air heating and cooling unit, please provide:
Building length, width and clear height
Installation height and available mounting position
Required indoor temperature
Local summer and winter outdoor temperatures
Number of occupants and required fresh air volume
Chilled-water and hot-water temperatures
Available power supply
Building drawings or equipment layout
Required control or BMS connection
Based on this information, AirTS can recommend the model, unit quantity, installation positions and air distribution layout.
Send us your building size, installation height, required indoor temperature and project drawings. AirTS will recommend the suitable unit model, quantity and installation layout.
