Heating and Cooling Unit
Home / Products / High & Large Space AC / High & Large Space Dedicated Air Conditioner / Heating and Cooling Unit / Louvered Recirculated Air Heating and Cooling Unit

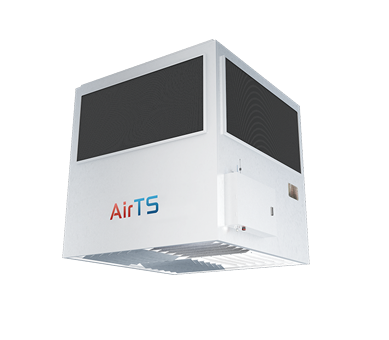

Louvered Recirculated Air Heating and Cooling Unit

Applications: ideal for high and large space (H: 4-30m) that needs cooling and heating with max 23m supply air height, uniform airflow and temp distribution.

Model: AirTS-KM-I, AirTS-KM-II

Function: cooling, heating

Cold and hot source: cold water (7-12℃) /hot water (40-90℃)

Control mode: wireless control, variable frequency, auto monitoring

Quality Assurance

Quality Assurance

After-sales Service

After-sales Service

Working Principle

When hot/cold water or steam passes the equipment, the efficient air exchanger in the equipment is used to achieve rapid heating/cooling of the air.

The large wind pressure axial flow fan installed on the top is used to forcedly press the hot/cold air down. Then the air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.

Functions

Fall prevention warning monitoring

Working data collection and analysis

Variable air volume and water volume

Wireless intelligent control

Louvered outlet

Frost protection

Function: cooling, heating

Support full AirTS products linkage control

AirTS top unit

High and large space air conditioner lifted on the roof

It achieves hot/cold air from the air exchanger in the equipment

It distributes the hot/cold air by means of efficient air distributor, which eliminates the undesirable indoor temp layers

Comfortable cooling or heating environment without wind feeling sense


Specification

Louvered Recirculated Air Heating and Cooling Unit

Louvered Recirculated Air Heating and Cooling Unit

Model
AirTS-KM-IAirTS-KM-II
Rotating speed of fanr/min0~13000~860
Standard circulating air volumem³/h0~57000~10100
VoltageV380±5%380±5%
Electric powerkW0~0.790~1.80
CurrentA0~1.450~3.60
Suitable installation heightm4~94~21
Control mode
VAV stepless regulation
VAV stepless regulation
Noise
dB<59<65

Louvered Recirculated Air Heating and Cooling Unit

Dimension

ModelAirTS-KM-IAirTS-KM-II
Amm7801100
Bmm740960
Cmm100100
Dmm
95115
Emm600800
Fmm435535
Gmm240295
H (internal thread)mmDN32DN50
J (external thread)mmDN25DN32
Mmm650920
Weightkg92198
Water volumeL910

Application
