Through strong air agitation to form a circulating airflow field, then generate a large simulated natural wind system, which accelerating air circulation in large spaces and greatly improving environmental comfort.

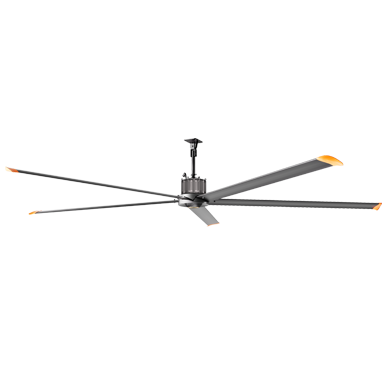

Model: AirTS-F26
Function: ventilation
Features: low noise, energy-saving, good heat dissipation, large air volume
Control mode: intelligent frequency conversion, wireless control
Quality Assurance
Stable and Durable.
After-sales Service
24H Online.
Woking Principle
The electric motor drives the blades into rotation, resulting in a powerful airflow.
Its operational principle is based on the principles of centrifugal force and gas dynamics. Enclosed within the fan is an electric motor that transmits power to the blades through a transmission mechanism.
As the motor initiates operation, it sets the blades in motion, causing changes in the surrounding air and thus generating wind.
The AirTS-F series large energy-saving fans adopt wing shaped blades, which can minimize air resistance and efficiently convert electrical energy into kinetic energy of the air.
The airflow covers a range beyond the diameter of fan, pushing the airflow vertically towards the ground, forming a 1-3 meter high airflow layer on the ground, thus forming a super large coverage area not only limited to fan size.

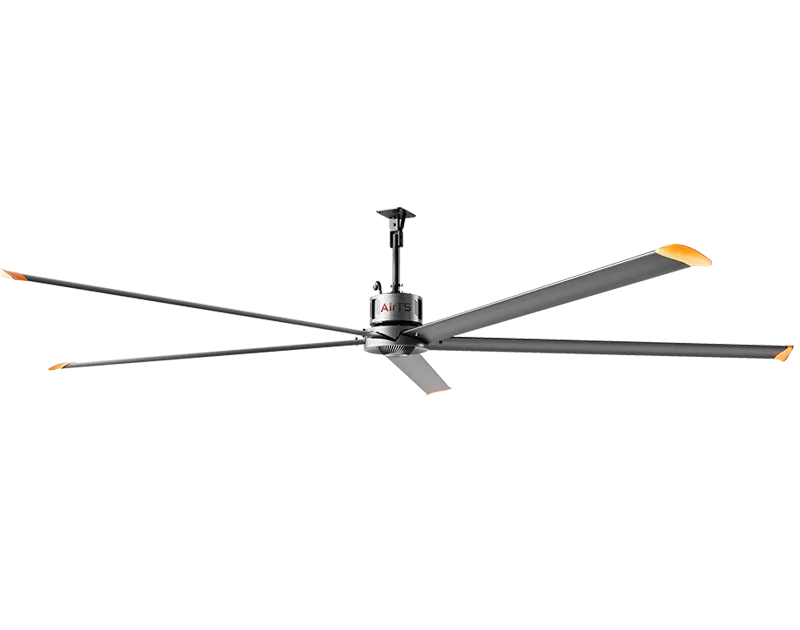

Features of 2.6m HVLS Fan
Lifetime increased more than 20%
Protection grade IP65
180°C temperature resistant permanent magnet
Primary energy efficiency
Weight reduced 20%
High quality imported brand bearing
Functions of 2.6m High Volume Low Speed Fan
Stereoscopic natural Wind
PMSM motor with Inner rotor
Knob controller, digital display
Optional mobile APP remote control
Optional wireless control system
Support full AirTS products linkage control
Large converage area
Save more than 30% energy,worked with AirTS air conditioner
Technical Comparison
PMSM VS Gear Shifting Motor
PMSM Motor Advantages:
A. More energy saving
B. Simple structure
C. Smaller size and lighter weight
D. Low noise
E. Frequency range: 0-50Hz
F. Direct drive motor without maintance
Gear Shifting Motor Weakness:
A. More power consumption
B. Complex structure
C. Bigger size and heavier weight, loud noise
D. Frequency range: 25-50Hz
E. Gear shifting motor, the gear should be replaced
AirTS-F Inner VS Outer Rotor
Inner Rotor Structure Advantages:
A. Better heat dissipation : stator is outside (heat source).
B. More safety: the rotating parts are only the motor shaft and fan blades.
C. Longer lifetime: the hanger rod and motor can be integrated as a whole, and the rotating bearings only need to bear the weight of the wind blades, slightly wear.
D. Stable operation: the motor body and fixed steel wire rope are fixed on the motor mounting plate, and the motor does not rotate.
Outer Rotor Structure Weakness:
A. No better heat dissipation: stator is inside (heat source).
B. Less safety: the rotating parts include the motor body and fan blades.
C. Shorter lifetime: single hanger rod, small stress area, and heavy bearing capacity.
D. Easy to shake: the hanger rod bears all the weight of the fan and the torque generated during operation
Standard Control
More Safety and Reliablity
Electrical protection:
2.6m High Volume Low Speed Fan has protection functions, such as overvoltage, under voltage, loss of voltage regulation, overload, collision, overheating, lightning strike, abnormality, and alarm linkage and so on.
Running indicator light (RUN):
When the light is off, the inverter is in shutdown state; when the light is on, the inverter is in running state.
Keyboard operation, terminal operation and remote operation
(communication control) indicator light (LOC):
.LOC light off: panel start, stop control.
.LOC light on: terminal start, stop control.
.LOC light blink: communication start, stop control.
Tuning, Torque Control, Fault Indicator Light (TUNE):
When the light is on, it means it is in torque control mode. If it flashes slowly, it is in tuning state. If it flashes quickly, it is in fault state.

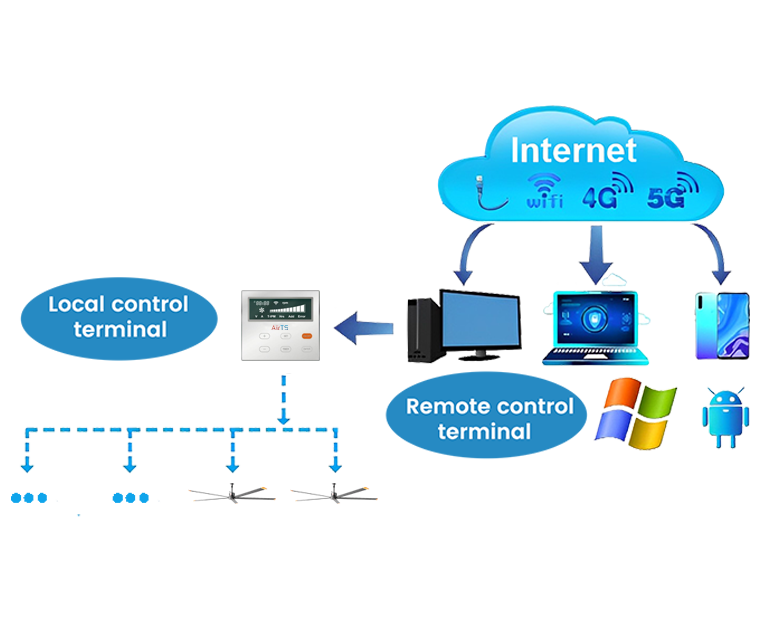

Optional IoT Control and Wireless Control System
IoT Control by Mobile APP for Android:
1. Remotely monitor the operating status of HVLS Fans
2. Data collection, analysis in time
3. Error alarm when fault happen
4. Support group control about 200 units
Optional Wireless Control System
1. Wireless control operation
2. The host computer can monitor all devices within a radius of 1km
3. Centralized control of multiple devices, partial control, single machine single control
4. Support for remote control by mobile APP
5. Accurate energy-saving and consumption reduction, automatic operation
6. Data recorded, multi-dimensional analysis
7. Support full AirTS products linkage control
Specification
Model | AirTS-F26 |
| Blades (PCS) | 5 |
| Diameter (mm/ft) | 2600/9 |
| Rotation Range (RPM) | 30~100 |
| Max airflow (m³/min) | 6800 |
| Voltage (V) | 110/220/380 |
| Frequency (Hz) | 50/60 |
| Motor power (kW) | 0.3 |
| Rated current (A) | 0.9 |
| Noise (dB) | 36 |
| Coverage area (m²) | 200 |
| Body weight (kg) | 28 |

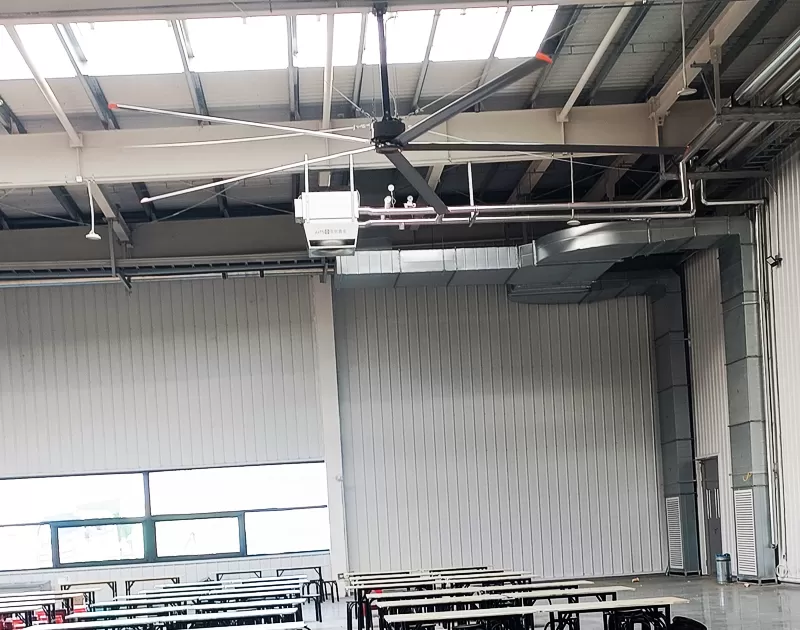

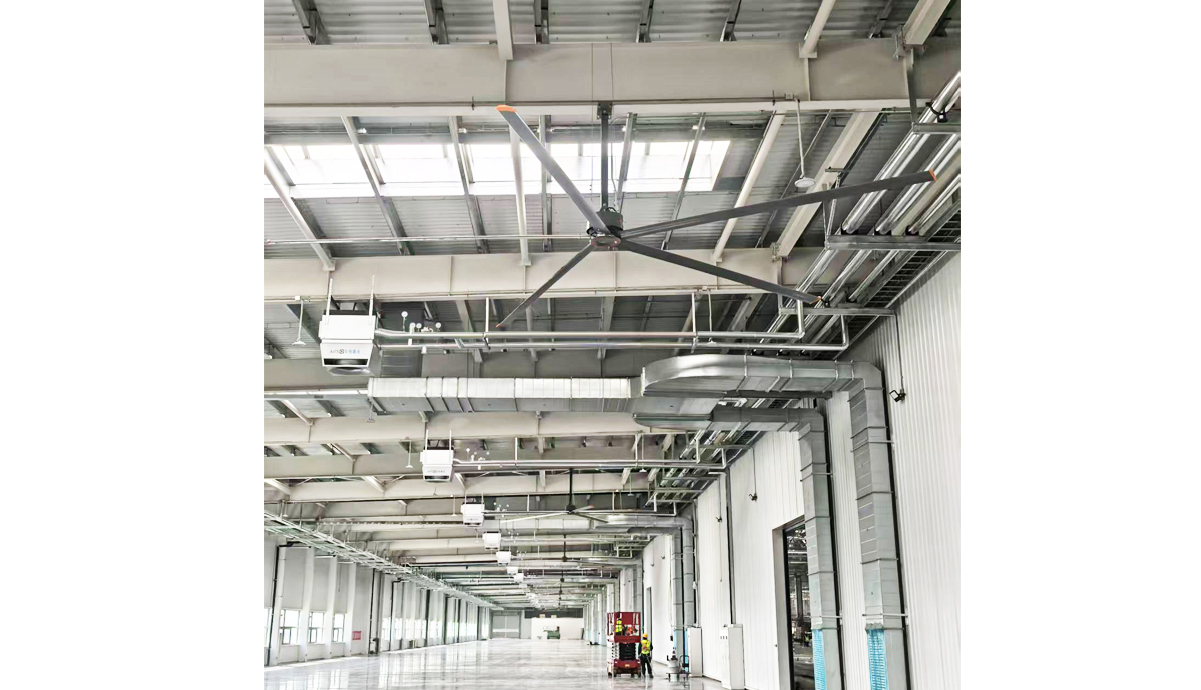

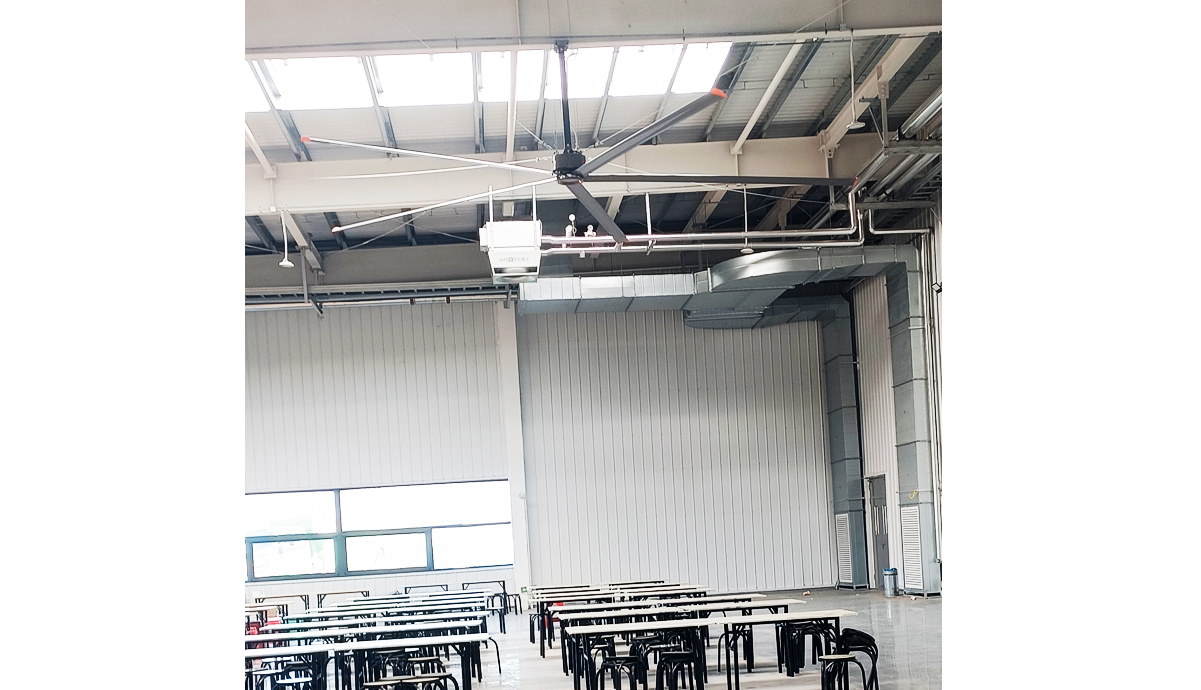

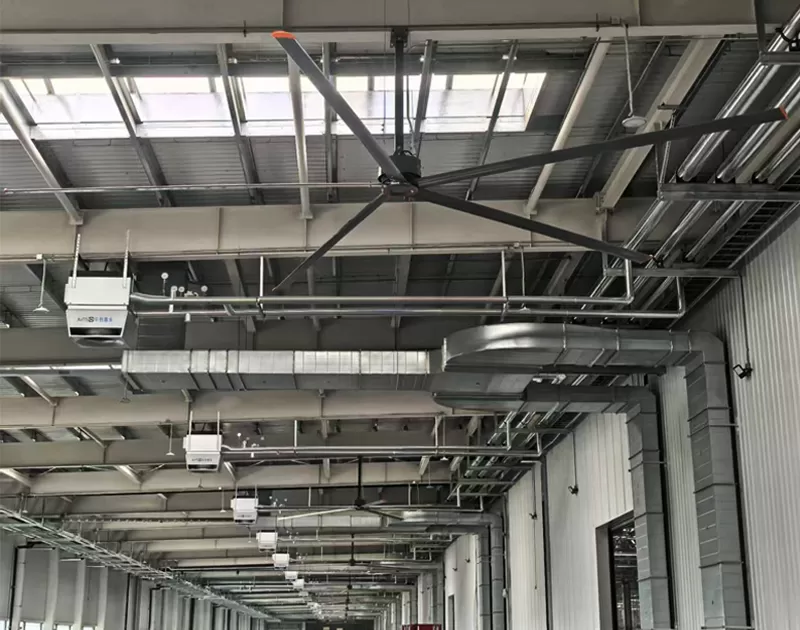

Application
The AirTS-F26 2.6m High Volume Low Speed Fan is designed for small and medium-sized commercial and industrial spaces that require efficient airflow, low noise, and energy-saving ventilation. With wide air coverage and PMSM motor technology, it helps improve indoor comfort while reducing HVAC energy consumption.
Improve air circulation in warehouses and storage facilities to reduce heat buildup, humidity, and stagnant air. The 9ft HVLS fan helps create a more comfortable environment for workers while protecting stored goods from moisture issues.
Enhance ventilation in production areas and workshops by delivering consistent airflow across the workspace. The low-speed large-volume airflow helps reduce worker fatigue and improve productivity.
Provide quiet and comfortable airflow in gyms, yoga studios, and fitness centers. The low-noise design improves customer comfort without disturbing workouts or classes.
Suitable for supermarkets, shopping areas, showrooms, and exhibition halls where comfortable airflow and energy efficiency are important. The fan helps reduce dependence on air conditioning systems.
Maintain fresh indoor air circulation in dining areas while operating quietly. The natural wind effect creates a more comfortable customer experience.
Ideal for poultry houses, livestock barns, and greenhouses where continuous airflow improves air quality, reduces heat stress, and supports healthier environments.
Improve ventilation and temperature distribution in logistics centers and loading areas. The large airflow coverage helps maintain worker comfort during long operating hours.
The AirTS-F26 is suitable for warehouses, gyms, workshops, retail stores, restaurants, logistics centers, and agricultural facilities with medium-sized open spaces.
The 2.6m High Volume Low Speed Fan is suitable for spaces around 200㎡, depending on installation height and environmental conditions.
Yes. HVLS fans consume significantly less energy than multiple small high-speed fans and can help reduce HVAC operating costs by improving air circulation.
No. The AirTS-F26 9ft HVLS fan is designed for low-noise operation, making it suitable for commercial and public indoor environments.
Yes. HVLS fans improve air distribution and help HVAC systems operate more efficiently by reducing temperature stratification.
The fan supports intelligent frequency conversion control, optional wireless control, and optional mobile APP remote control for convenient operation
The recommended installation height for a 2.6m HVLS fan is generally around 3-6 meters, depending on the application environment and airflow requirements.
