Woking Principle

The electric motor drives the blades into rotation, resulting in a powerful airflow.

Its operational principle is based on the principles of centrifugal force and gas dynamics. Enclosed within the fan is an electric motor that transmits power to the blades through a transmission mechanism.

As the motor initiates operation, it sets the blades in motion, causing changes in the surrounding air and thus generating wind.

The AirTS-F series large energy-saving fans adopt wing shaped blades, which can minimize air resistance and efficiently convert electrical energy into kinetic energy of the air.

The airflow covers a range beyond the diameter of fan, pushing the airflow vertically towards the ground, forming a 1-3 meter high airflow layer on the ground, thus forming a super large coverage area not only limited to fan size.

Features

Lifetime increased more than 20%

Protection grade IP65

180°C temperature resistant permanent magnet

Primary energy efficiency

Weight reduced 20%

High quality imported brand bearing

Functions

Stereoscopic natural Wind

PMSM motor with Inner rotor

Knob controller, digital display

Optional mobile APP remote control

Optional wireless control system

Support full AirTS products linkage control

Large converage area

Save more than 30% energy,worked with AirTS air conditioner

Technical Comparison

PMSM VS Gear Shifting Motor

PMSM Motor Advantages:

A. More energy saving

B. Simple structure

C. Smaller size and lighter weight

D. Low noise

E. Frequency range: 0-50Hz

F. Direct drive motor without maintance

Gear Shifting Motor Weakness:

A. More power consumption

B. Complex structure

C. Bigger size and heavier weight, loud noise

D. Frequency range: 25-50Hz

E. Gear shifting motor, the gear should be replaced

AirTS-F Inner VS Outer Rotor

Inner Rotor Structure Advantages:

A. Better heat dissipation : stator is outside (heat source).

B. More safety: the rotating parts are only the motor shaft and fan blades.

C. Longer lifetime: the hanger rod and motor can be integrated as a whole, and the rotating bearings only need to bear the weight of the wind blades, slightly wear.

D. Stable operation: the motor body and fixed steel wire rope are fixed on the motor mounting plate, and the motor does not rotate.

Outer Rotor Structure Weakness:

A. No better heat dissipation: stator is inside (heat source).

B. Less safety: the rotating parts include the motor body and fan blades.

C. Shorter lifetime: single hanger rod, small stress area, and heavy bearing capacity.

D. Easy to shake: the hanger rod bears all the weight of the fan and the torque generated during operation

Standard Control

More Safety and Reliablity

Electrical protection:

lt has protection functions, such as overvoltage, under voltage, loss of voltage regulation, overload, collision, overheating, lightning strike, abnormality, and alarm linkage and so on.

Running indicator light (RUN):

When the light is off, the inverter is in shutdown state; when the light is on, the inverter is in running state.

Keyboard operation, terminal operation and remote operation

(communication control) indicator light (LOC):

.LOC light off: panel start, stop control.

.LOC light on: terminal start, stop control.

.LOC light blink: communication start, stop control.

Tuning, Torque Control, Fault Indicator Light (TUNE):

When the light is on, it means it is in torque control mode. If it flashes slowly, it is in tuning state. If it flashes quickly, it is in fault state.

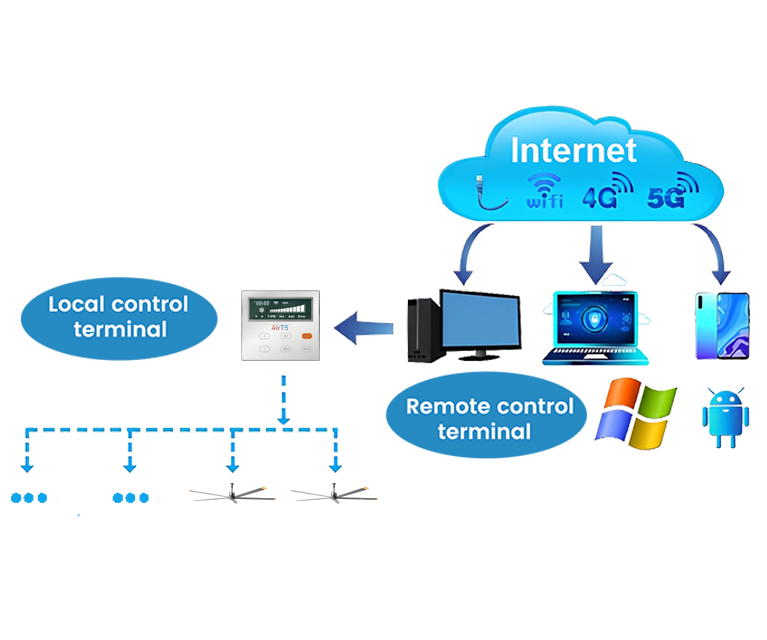

Optional IoT Control and Wireless Control System

IoT Control by Mobile APP for Android:

1. Remotely monitor the operating status of HVLS Fans

2. Data collection, analysis in time

3. Error alarm when fault happen

4. Support group control about 200 units

Optional Wireless Control System

1. Wireless control operation

2. The host computer can monitor all devices within a radius of 1km

3. Centralized control of multiple devices, partial control, single machine single control

4. Support for remote control by mobile APP

5. Accurate energy-saving and consumption reduction, automatic operation

6. Data recorded, multi-dimensional analysis

7. Support full AirTS products linkage control

Specification

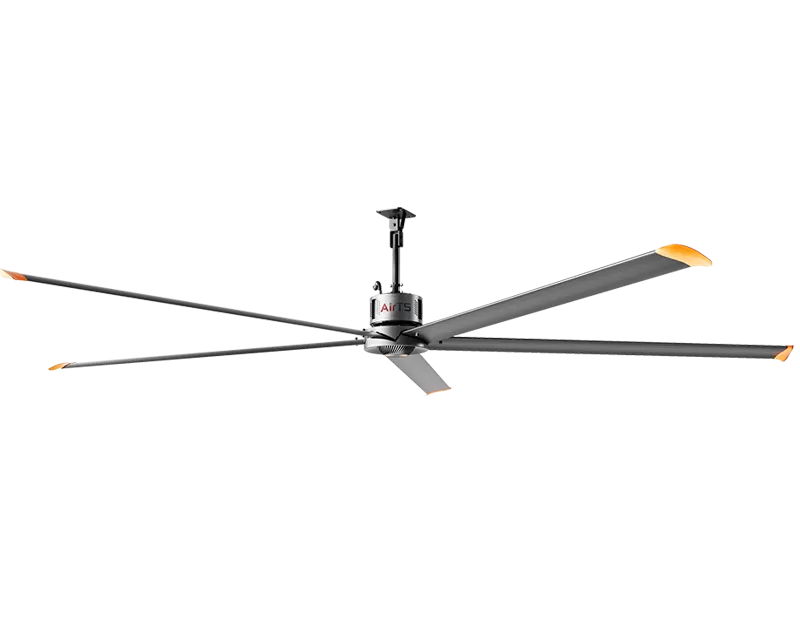

AirTS-F49 High Volume Low speed Fan

Model	AirTS-F42
Blades (PCS)	5
Diameter (mm/ft)	4200/14
Rotation Range (RPM)	30~80
Max airflow (m³/min)	7500
Voltage (V)	110/220/380
Frequency (Hz)	50/60
Motor power (kW)	0.5
Rated current (A)	2.0
Noise (dB)	38
Coverage area (m²)	400
Body weight (kg)	38

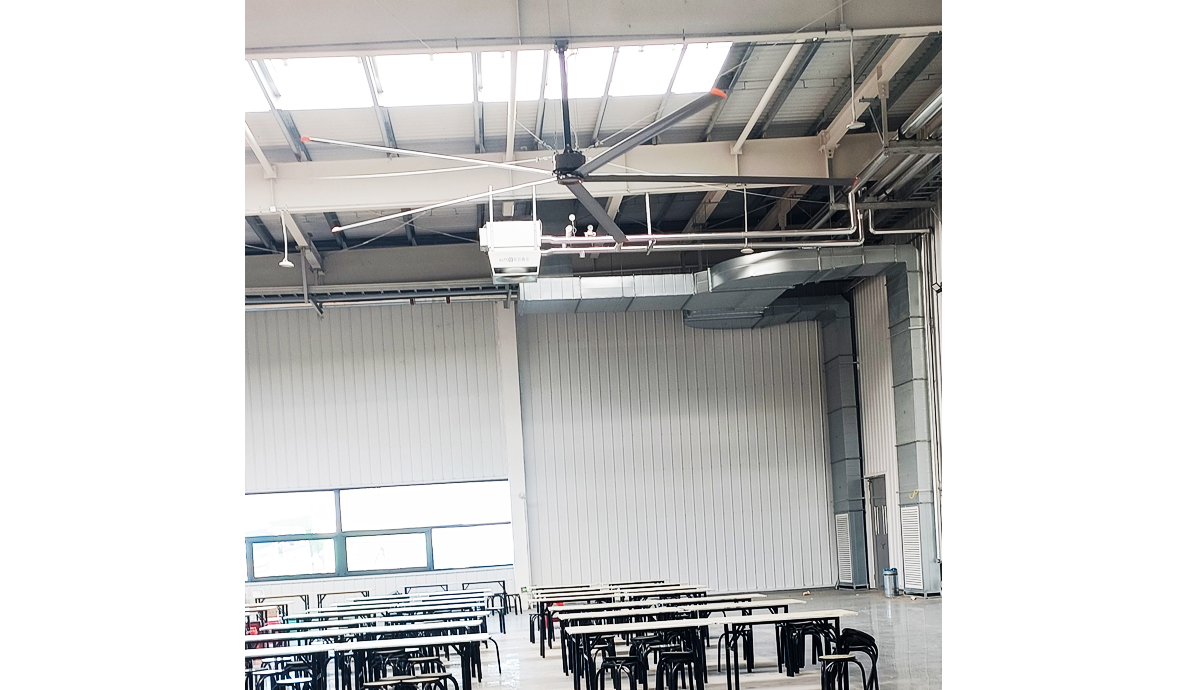

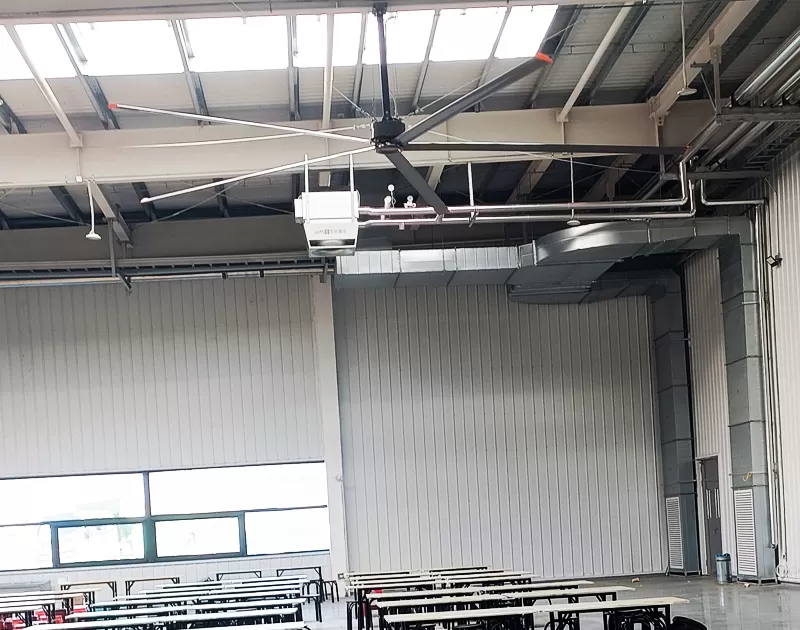

Where Does a 14ft HVLS Fan Work Best?

● Medium Workshops
Suitable for production or assembly areas where a 3.2m fan cannot provide sufficient coverage.

● Auto Service Centers & 4S Workshops
Provides broad, low-speed airflow without the strong localized drafts produced by high-speed industrial fans.

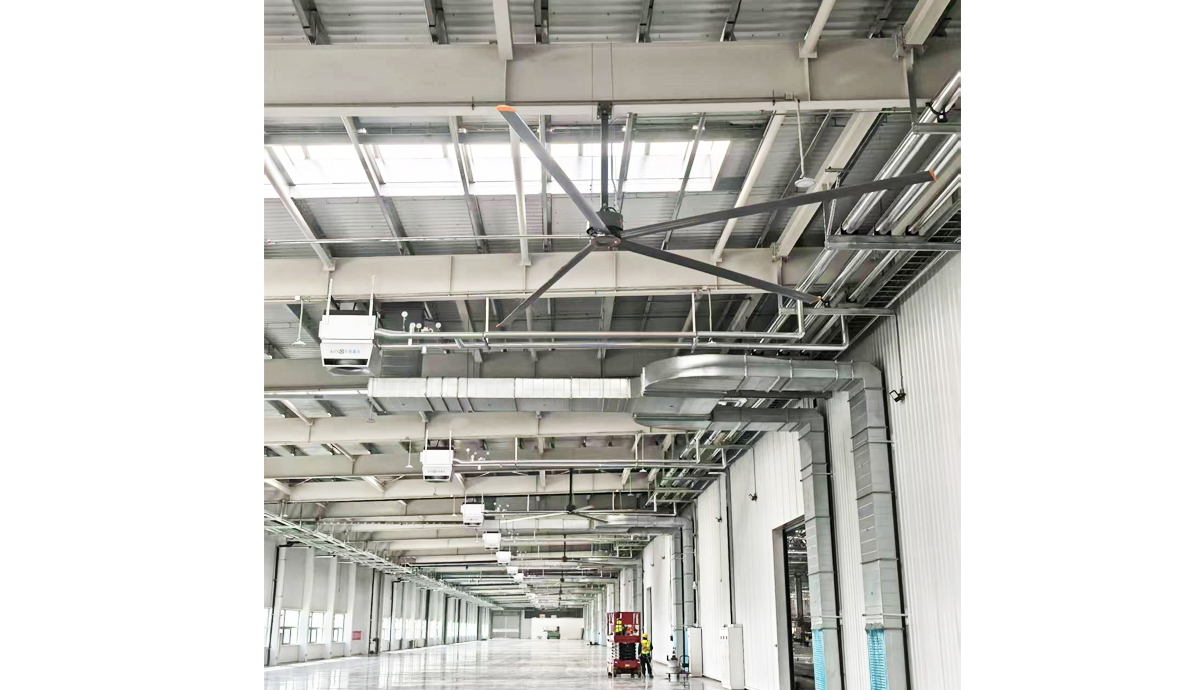

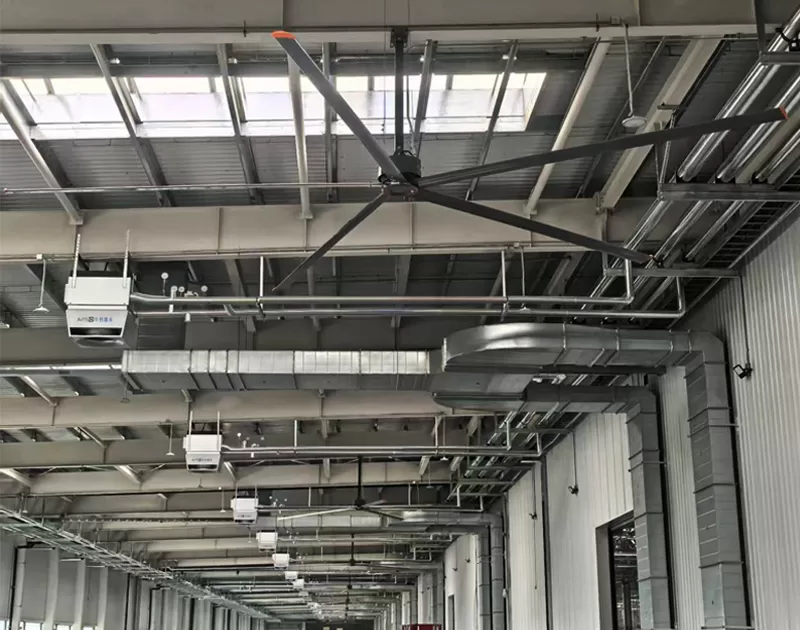

● Medium Warehouses
Suitable for open storage and picking areas requiring approximately 400 m² of air circulation per fan.

● Showrooms & Exhibition Areas
The 38 dB operating noise makes the F42 4200mm HVLS fan suitable for spaces where airflow and acoustic comfort are both important.

F32 vs F42 vs F49 HVLS Fan

Model	F32	F42	F49
Diameter	3.2m / 11ft	4.2m / 14ft	4.9m / 16ft
Coverage	300㎡	400㎡	约500㎡
Motor	0.3kW	0.5kW	0.75kW
Positioning	Compact	Medium-size	Industrial
Best For	Commercial / small areas	Medium workshop / warehouse	Larger industrial areas

Choose F42 when F32 does not provide enough coverage but your facility does not require the larger footprint of an F49, F55 or F61.

FAQ-4.2m HVLS fan

1. How much area can the AirTS F42 HVLS fan cover?

The AirTS F42 4.2m HVLS fan can cover approximately 400 m² under suitable installation conditions. Actual coverage may vary depending on ceiling height, building layout, obstructions, and ventilation conditions.

2. What size is the AirTS F42 HVLS fan?

The F42 medium size HVLS fan has a diameter of 4.2 meters, approximately 14 feet, making it suitable for medium-sized workshops, warehouses, showrooms, and commercial spaces.

3. What is the motor power of the F42 HVLS fan?

The F42 uses a 0.5 kW PMSM motor, providing high airflow with relatively low energy consumption.

4. Should I choose the F32, F42, or F49 HVLS fan?

Choose the 14 foot HVLS ceiling fan for smaller spaces, the F42 for medium-sized areas requiring approximately 400 m² coverage, and the F49 when greater airflow coverage or a larger installation area is required.

5. Is the F42 14 ft HVLS fan suitable for warehouses and workshops?

Yes. The 14 foot HVLS ceiling fan is suitable for medium-sized warehouses, production workshops, automotive service centers, assembly areas, and other open industrial or commercial spaces.

6. What ceiling height is recommended for the F42 HVLS fan?

The required installation height depends on the building structure, operating area, and safety clearance. AirTS can recommend the appropriate installation position based on your ceiling height and floor layout.

7. How many F42 HVLS fans do I need?

The quantity depends on the total floor area, ceiling height, equipment layout, columns, and required airflow coverage. Send us your building dimensions or floor plan for a recommended fan layout.

8. Can the F42 HVLS fan be customized?

Yes. Control options, installation components, operating solutions, and other specifications can be configured according to the project requirements.

Need Help Choosing the Right HVLS Fan?

Send us your workshop or warehouse dimensions, ceiling height, and floor plan. AirTS will recommend the suitable HVLS fan model and quantity for your space.

Get a Free Fan Layout Recommendation
