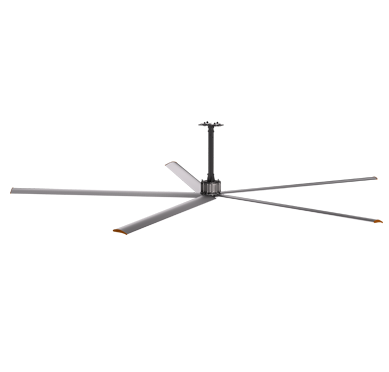

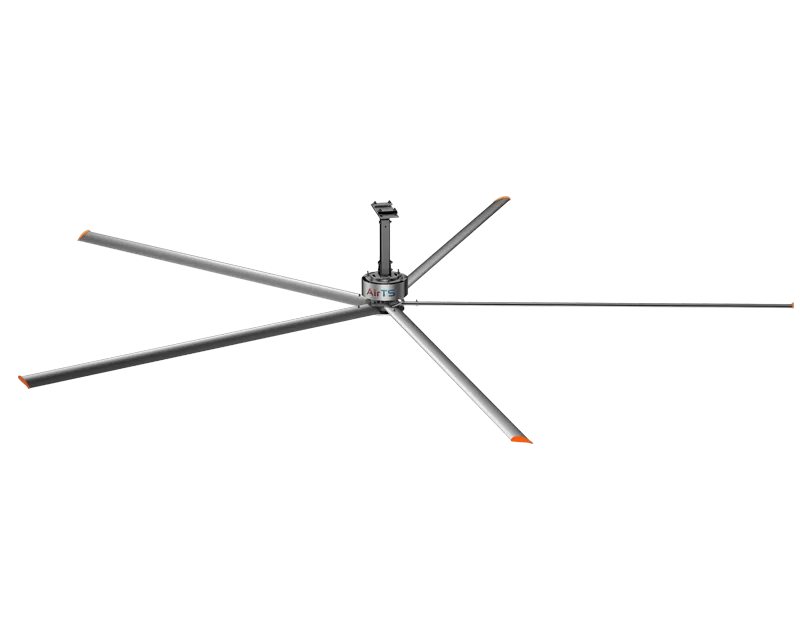

AirTS-F61 20ft HVLS Fan is a 6100mm large diameter HVLS fan designed for warehouses, manufacturing plants, logistics centers and other high-ceiling buildings.

With a 20ft blade diameter and PMSM direct-drive motor, it creates a wide and uniform airflow circulation area, helping improve ventilation, reduce heat accumulation and enhance indoor comfort in large spaces.

Compared with smaller HVLS fan models, 20ft HVLS Fan provides stronger airflow penetration and wider coverage, making it suitable for large warehouses, production workshops and logistics facilities where consistent air movement is required.

6100mm / 20ft large diameter design
Coverage area up to 1000㎡
PMSM direct-drive motor
Low noise operation
Intelligent frequency conversion control
Suitable for high-ceiling industrial buildings

Woking Principle

The electric motor drives the blades into rotation, resulting in a powerful airflow.

Its operational principle is based on the principles of centrifugal force and gas dynamics. Enclosed within the fan is an electric motor that transmits power to the blades through a transmission mechanism.

As the motor initiates operation, it sets the blades in motion, causing changes in the surrounding air and thus generating wind.

The AirTS-F series large energy-saving fans adopt wing shaped blades, which can minimize air resistance and efficiently convert electrical energy into kinetic energy of the air.

The airflow covers a range beyond the diameter of fan, pushing the airflow vertically towards the ground, forming a 1-3 meter high airflow layer on the ground, thus forming a super large coverage area not only limited to fan size.

Features

Lifetime increased more than 20%

Protection grade IP65

180°C temperature resistant permanent magnet

Primary energy efficiency

Weight reduced 20%

High quality imported brand bearing

Functions

Stereoscopic natural Wind

PMSM motor with Inner rotor

Knob controller, digital display

Optional mobile APP remote control

Optional wireless control system

Support full AirTS products linkage control

Large converage area

Save more than 30% energy,worked with AirTS air conditioner

Technical Comparison

PMSM VS Gear Shifting Motor

PMSM Motor Advantages:

A. More energy saving

B. Simple structure

C. Smaller size and lighter weight

D. Low noise

E. Frequency range: 0-50Hz

F. Direct drive motor without maintance

Gear Shifting Motor Weakness:

A. More power consumption

B. Complex structure

C. Bigger size and heavier weight, loud noise

D. Frequency range: 25-50Hz

E. Gear shifting motor, the gear should be replaced

AirTS-F Inner VS Outer Rotor

Inner rotor structure advantages:

A. Better heat dissipation: stator is outside (heat source).

B. More safety: the rotating parts are only the motor shaft and fan blades.

C. Longer lifetime: the hanger rod and motor can be integrated as a whole, and the rotating bearings only need to bear the weight of the wind blades, slightly wear.

D. Stable operation: the motor body and fixed steel wire rope are fixed on the motor mounting plate, and the motor does not rotate.

Outer rotor structure weakness:

A. No better heat dissipation: stator is inside (heat source).

B. Less safety: the rotating parts include the motor body and fan blades.

C. Shorter lifetime: single hanger rod, small stress area, and heavy bearing capacity.

D. Easy to shake: the hanger rod bears all the weight of the fan and the torque generated during operation

Standard Control

More Safety and Reliable

Electrical protection:

lt has protection functions, such as overvoltage, under voltage, loss of voltage regulation, overload, collision, overheating, lightning strike, abnormality, and alarm linkage and so on.

Running indicator light (RUN):

When the light is off, the inverter is in shutdown state; when the light is on, the inverter is in running state.

Keyboard operation, terminal operation and remote operation

(communication control) indicator light (LOC):

.LOC light off: panel start, stop control.

.LOC light on: terminal start, stop control.

.LOC light blink: communication start, stop control.

Tuning, Torque Control, Fault Indicator Light (TUNE):

When the light is on, it means it is in torque control mode. If it flashes slowly, it is in tuning state. If it flashes quickly, it is in fault state.

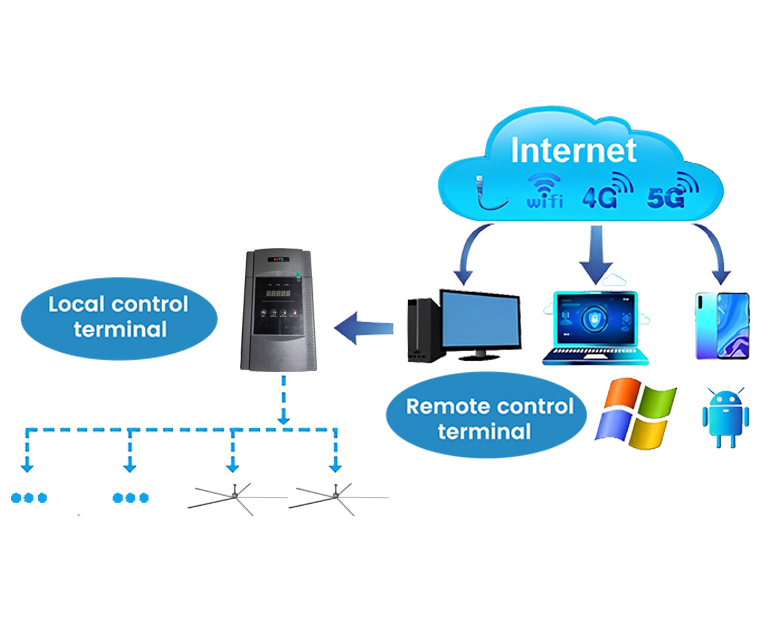

Optional IoT Control and Wireless Control System

IoT Control by Mobile APP for Android:

1. Remotely monitor the operating status of HVLS Fans

2. Data collection, analysis in time

3. Error alarm when fault happen

4. Support group control about 200 units

Optional Wireless Control System

1. Wireless control operation

2. The host computer can monitor all devices within a radius of 1km

3. Centralized control of multiple devices, partial control, single machine single control

4. Support for remote control by mobile APP

5. Accurate energy-saving and consumption reduction, automatic operation

6. Data recorded, multi-dimensional analysis

7. Support full AirTS products linkage control

Specification

AirTS-F61 High Volume Low speed Fan

Model	AirTS-F61
Blades (PCS)	5
Diameter (mm/ft)	6100/20
Rotation Range (RPM)	20~58
Max airflow (m³/min)	12500
Voltage (V)	110/220/380
Frequency (Hz)	50/60
Motor power (kW)	0.88
Rated current (A)	3.5
Noise (dB)	39
Coverage area (m²)	1000
Body weight (kg)	95

Applications of 20ft HVLS Fan

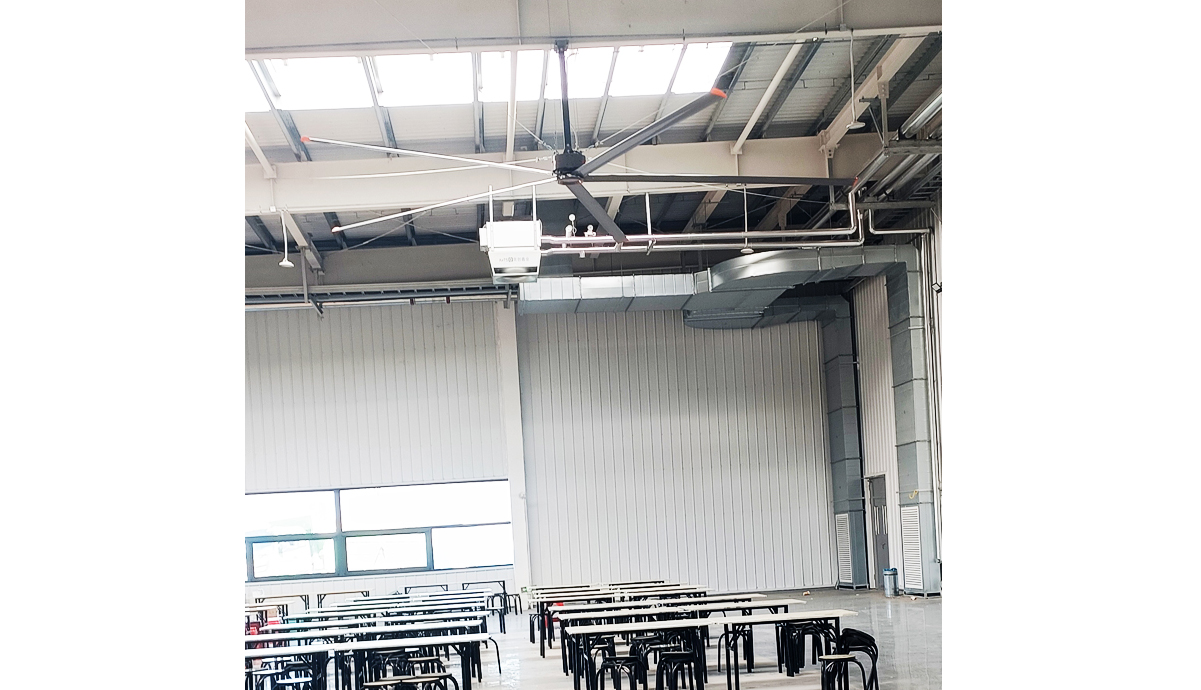

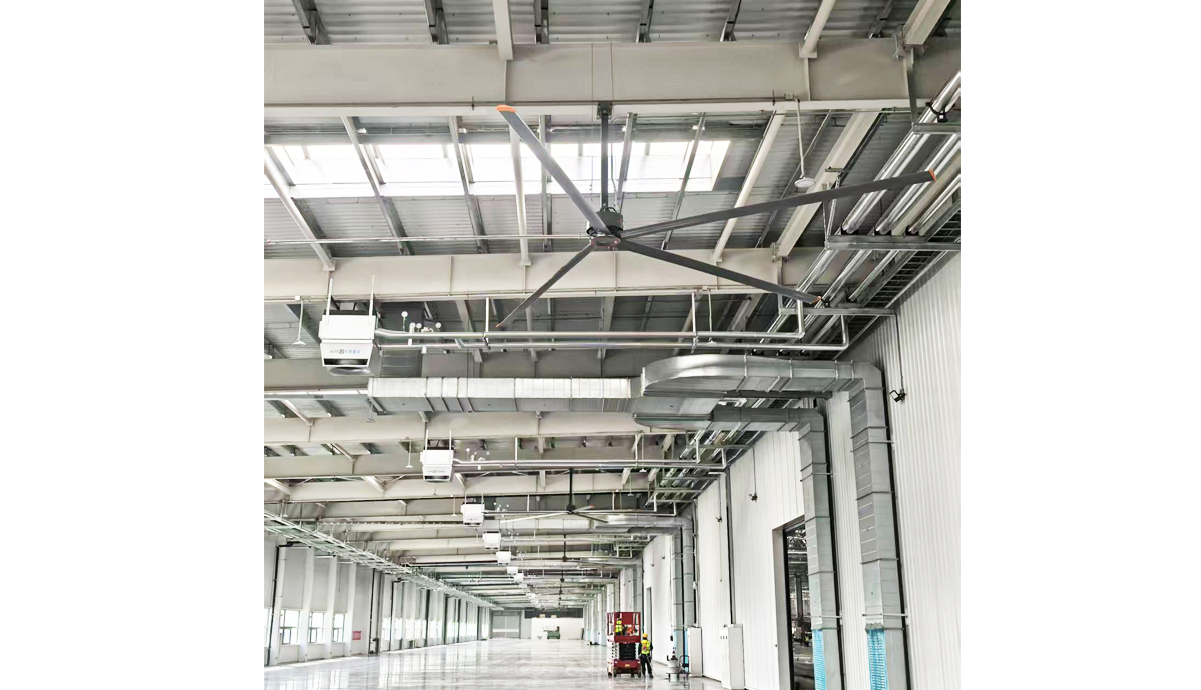

Large Warehouses

Improve air circulation in storage areas with high ceilings and reduce temperature stratification.

Manufacturing Plants

Provide continuous airflow for workers and production environments.

Logistics Centers

Support ventilation in large distribution facilities with wide floor areas.

Automotive Facilities

Help maintain comfortable working conditions in large service and assembly spaces.

AirTS HVLS Fan Selection Guide

Model	Diameter	Recommended Application
AirTS-F32	3.2m	Small commercial spaces
AirTS-F42	4.2m	Medium workshops
AirTS-F49	4.9m	Warehouses and workshops
AirTS-F55	5.5m	Large workshops
AirTS-F61	6.1m	Large warehouses & industrial plants
AirTS-F73	7.3m	Ultra-large spaces

Coverage Recommendation

AirTS-F61 20ft hvls industrial ceiling fan is designed for large industrial spaces with high ceilings. The actual coverage area depends on ceiling height, building structure, airflow requirements and installation layout.

AirTS provides professional recommendations based on:

Building length and width
Ceiling height
Indoor temperature conditions
Ventilation requirements
Working area layout

Why Choose 20ft HVLS Fan?

1. Larger Air Coverage

Compared with smaller diameter HVLS fans, 6100mm HVLS Fan delivers stronger airflow distribution for larger indoor spaces.

2. Energy Efficient PMSM Motor

The permanent magnet synchronous motor provides high efficiency, low noise operation and maintenance-free direct drive.

3. Stable Operation in Industrial Environments

With IP65 protection and industrial-grade components, F61 is designed for continuous operation.

4. Flexible Smart Control

Supports wireless control, APP monitoring and multi-fan linkage systems.

FAQ-20ft HVLS Fan

Q1: What size space is 20ft HVLS Fan suitable for?

20ft HVLS Fan is designed for large spaces such as warehouses, factories and logistics centers. It can cover approximately 1000㎡ depending on installation conditions.

Q2: What is the difference between F61 and F55 HVLS fan?

F61 has a larger 6.1m diameter and provides wider airflow coverage, making it more suitable for larger industrial buildings.

Q3: Is 6.1m HVLS Fan suitable for warehouse ventilation?

Yes. The 6.1m HVLS Fan is designed for warehouse ventilation by creating low-speed, large-volume airflow circulation.

Q4: How many F61 fans are needed for a factory?

The required quantity depends on building size, ceiling height, layout and airflow requirements. AirTS can provide layout recommendations according to project conditions.
