7.3 meter HVLS fan, HVLS Fan 7300mm

Working Principle Technical comparison Specification Application Download Inquire Now

Low Temperature Rise • Long Service Life • Sizes from 2.6m to 7.3m

HVLS Industrial Fan

Our AirTS HVLS (High Volume Low Speed) industrial ceiling fans are specially engineered for large workshops, warehouses, logistics centers, and agricultural facilities. Powered by a high-efficiency permanent magnet synchronous motor (PMSM), our fans deliver strong airflow coverage up to 36 meters in radius, ensuring a cooler, healthier, and more productive environment.

Why Choose AirTS HVLS Fans?

Problem	Our Solution
Workshop hot, humid & stuffy	Wide, uniform airflow – temperature drops 5-8℃
Standard motors overheat easily	PMSM motor with low temperature rise, longer life
Different space sizes	Full size range 2.6m – 7.3m to match any site
High electricity bills	Ultra-low power, as little as 1.5kW, saving up to 70%

Core Technical Advantages

🔹 Permanent Magnet Synchronous Motor (PMSM)

Efficient power output with low heat generation, ensuring stability and durability even in 24/7 operations.

🔹 Full Size Range: 2.6m – 7.3m

Whether it’s a compact workshop or a massive warehouse, we provide a perfect-fit fan size for maximum efficiency. Contact us to customize sizes.

🔹 Energy Saving: Up to 70% Lower Consumption

With power as low as 1.5kW, our HVLS fans replace dozens of small fans, reducing operational costs significantly. Each fan can cover up to 1,000㎡ with uniform airflow, creating a natural ventilation effect without costly HVAC systems.

🔹 Ultra-quiet Operation & Safety Guarantee

Noise levels are kept to a minimum with advanced aerodynamic blade design, while multiple safety systems (anti-fall, anti-shake, overload protection) ensure reliable use in all conditions.

Working Principle

The electric motor drives the blades into rotation, resulting in a powerful airflow.

Its operational principle is based on the principles of centrifugal force and gas dynamics. Enclosed within the fan is an electric motor that transmits power to the blades through a transmission mechanism.

As the motor initiates operation, it sets the blades in motion, causing changes in the surrounding air and thus generating wind.

The AirTS-F series large energy-saving fans adopt wing shaped blades, which can minimize air resistance and efficiently convert electrical energy into kinetic energy of the air.

The airflow covers a range beyond the diameter of fan, pushing the airflow vertically towards the ground, forming a 1-3 meter high airflow layer on the ground, thus forming a super large coverage area not only limited to fan size.

7.3 meter HVLS fan Features

Lifetime increased more than 20%

Protection grade IP65

180°C temperature resistant permanent magnet

Primary energy efficiency

Weight reduced 20%

High quality imported brand bearing

7.3 meter HVLS fan Functions & Features

Stereoscopic natural Wind

PMSM motor with Inner rotor

Knob controller, digital display

Optional mobile APP remote control

Optional wireless control system

Support full AirTS products linkage control

Large converage area

Save more than 30% energy,worked with AirTS air conditioner

Technical Comparison

PMSM VS Gear Shifting Motor

PMSM Motor Advantages:

A. More energy saving

B. Simple structure

C. Smaller size and lighter weight

D. Low noise

E. Frequency range: 0-50Hz

F. Direct drive motor without maintance

Gear Shifting Motor Weakness:

A. More power consumption

B. Complex structure

C. Bigger size and heavier weight, loud noise

D. Frequency range: 25-50Hz

E. Gear shifting motor, the gear should be replaced

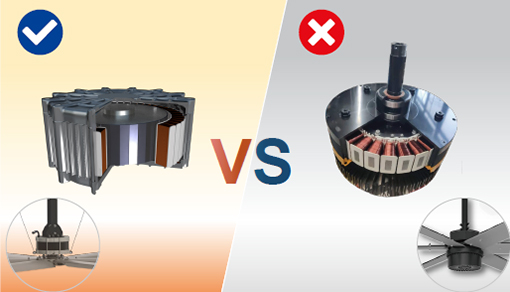

AirTS-F Inner VS Outer Rotor

Inner Rotor Structure Advantages:

A. Better heat dissipation: stator is outside (heat source).

B. More safety: the rotating parts are only the motor shaft and fan blades.

C. Longer lifetime: the hanger rod and motor can be integrated as a whole, and the rotating bearings only need to bear the weight of the wind blades, slightly wear.

D. Stable operation: the motor body and fixed steel wire rope are fixed on the motor mounting plate, and the motor does not rotate.

Outer Rotor Structure Weakness:

A. No better heat dissipation: stator is inside (heat source).

B. Less safety: the rotating parts include the motor body and fan blades.

C. Shorter lifetime: single hanger rod, small stress area, and heavy bearing capacity.

D. Easy to shake: the hanger rod bears all the weight of the fan and the torque generated during operation

Standard Control

More Safety and Reliablity

Electrical protection:

lt has protection functions, such as overvoltage, under voltage, loss of voltage regulation, overload, collision, overheating, lightning strike, abnormality, and alarm linkage and so on.

Running indicator light (RUN):

When the light is off, the inverter is in shutdown state; when the light is on, the inverter is in running state.

Keyboard operation, terminal operation and remote operation

(communication control) indicator light (LOC):

.LOC light off: panel start, stop control.

.LOC light on: terminal start, stop control.

.LOC light blink: communication start, stop control.

Tuning, Torque Control, Fault Indicator Light (TUNE):

When the light is on, it means it is in torque control mode. If it flashes slowly, it is in tuning state. If it flashes quickly, it is in fault state.

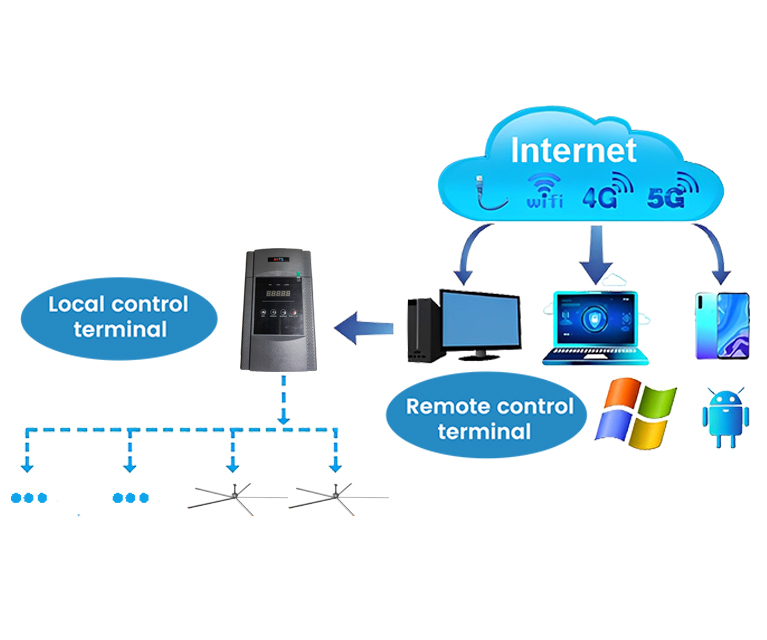

Optional IoT Control and Wireless Control System

IoT Control by Mobile APP for Android:

1. Remotely monitor the operating status of HVLS Fans

2. Data collection, analysis in time

3. Error alarm when fault happen

4. Support group control about 200 units

Optional Wireless Control System

1. Wireless control operation

2. The host computer can monitor all devices within a radius of 1km

3. Centralized control of multiple devices, partial control, single machine single control

4. Support for remote control by mobile APP

5. Accurate energy-saving and consumption reduction, automatic operation

6. Data recorded, multi-dimensional analysis

7. Support full AirTS products linkage control

7.3 meter HVLS fan Specification

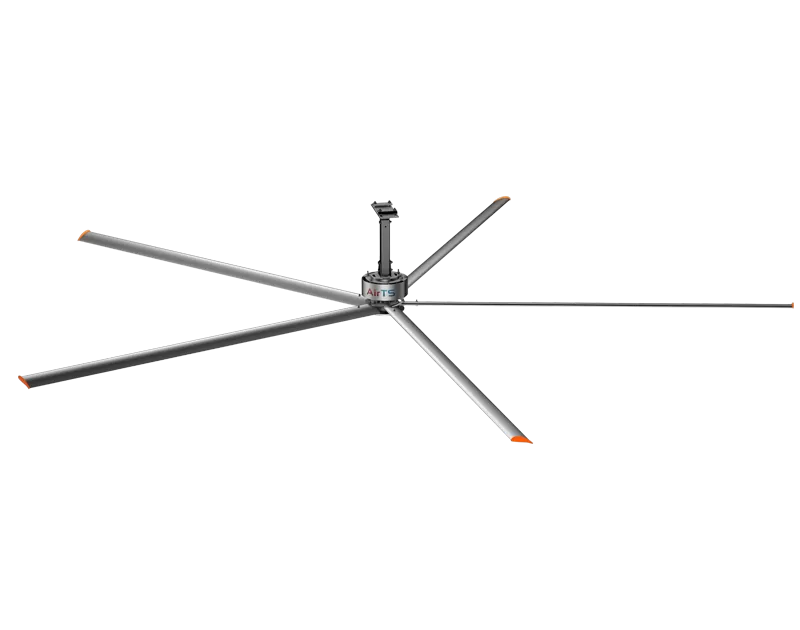

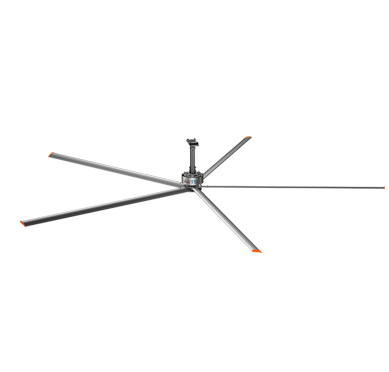

AirTS-F73 High Volume Low Speed Fan

Model	AirTS-F73
Blades (PCS)	5
Diameter (mm/ft)	7300/24
Rotation Range (RPM)	20~53
Max airflow (m³/min)	13800
Voltage (V)	110/220/380
Frequency (Hz)	50/60
Motor power (kW)	1.2
Rated current (A)	3.5
Noise (dB)	39
Coverage area (m²)	1700
Body weight (kg)	112

FAQ About HVLS Fan

Q1: What is an HVLS fan?

A High Volume Low Speed (HVLS) fan is a large industrial ceiling fan, typically ranging from 2 to 7.3 meters in diameter, designed to move massive volumes of air at low rotational speeds.

Q2: What is special about the AirTS motor technology?

Unlike traditional asynchronous motors, AirTS HVLS fans use internal rotor permanent magnet synchronous motors. This design reduces heat rise, improves efficiency, extends lifespan, and ensures stable operation.

Q3: What are the main benefits of HVLS fans?

They improve air circulation, reduce humidity, enhance worker comfort, lower energy consumption, and can work alongside HVAC systems to optimize cooling and heating efficiency.

Q4: How much energy can an AirTS HVLS fan save?

With power consumption as low as 1.5kW, AirTS fans can save up to 70% energy compared with traditional cooling solutions. This significantly reduces electricity costs for factories and warehouses.

Q5: Do HVLS fans work with air conditioning systems?

Yes. HVLS fans complement HVAC systems by distributing conditioned air evenly, reducing temperature differences, and improving energy efficiency.

Q6: Are HVLS fans noisy during operation?

No. AirTS HVLS fans are designed with low-noise operation and multi-layer safety protection, ensuring a quiet and safe working environment.

Q7: Can I customize the HVLS fan?

Yes. AirTS supports custom sizes, colors, and installation solutions to fit the unique requirements of your space and industry.

AirTS offers HVLS fans in multiple diameters: 7.3m, 6.1m, 5.5m, 4.9m, 4.2m, 3.2m, and 2.6m. This wide range ensures the perfect match for workshops, warehouses, logistics centers, and agricultural spaces of different sizes.

Q8: How large is the airflow coverage of one fan?

A single AirTS HVLS fan can cover up to a 36-meter radius (over 1,000㎡), creating a wide, uniform air circulation that replaces dozens of small fans.

Q9: Can HVLS fans reduce temperature effectively?

Yes. In actual case studies, AirTS HVLS fans have lowered indoor temperatures by 5–6℃ in logistics centers and livestock farms, improving comfort and productivity.

Q10: In which industries are AirTS HVLS fans most effective?

They are widely used in factories, warehouses, logistics centers, shopping malls, gyms, exhibition halls, poultry houses, and farms, where large-scale ventilation and energy savings are needed.

Q11: How does an HVLS fan work in winter?

In winter, the fan helps to destratify air layers by pushing warm air near the ceiling back down, balancing the temperature and reducing heating costs.

Q12: What is the lifespan of an HVLS fan?

With proper installation and maintenance, HVLS fans can last 10–15 years or more, depending on usage and environment.

Q13: How are HVLS fans controlled?

They can be operated via wall-mounted controllers, remote systems, or integrated into building management systems (BMS) for smart operation.

Q14: How can I get an installation solution?

Simply contact AirTS for a free consultation. Our engineers will assess your site and provide a custom installation design to maximize performance and efficiency.
