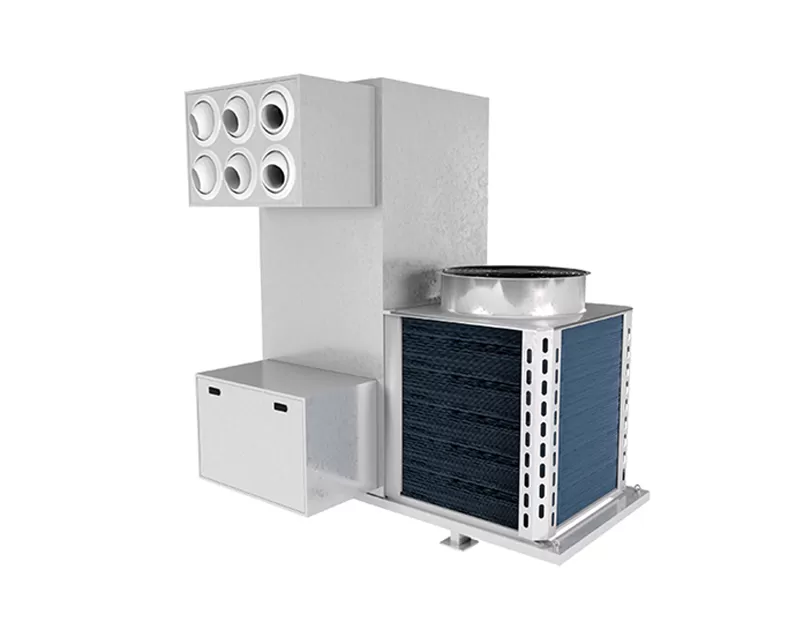

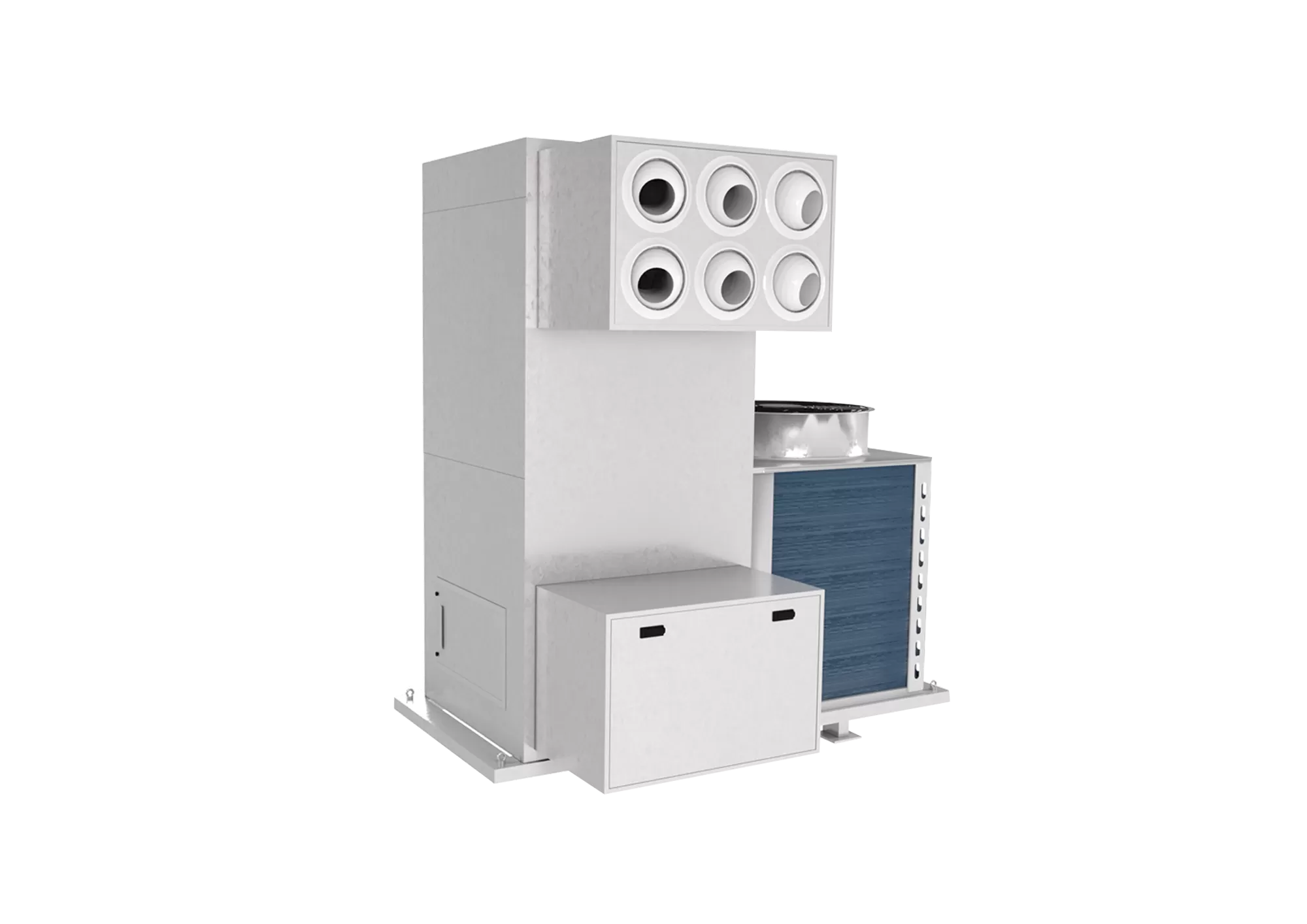

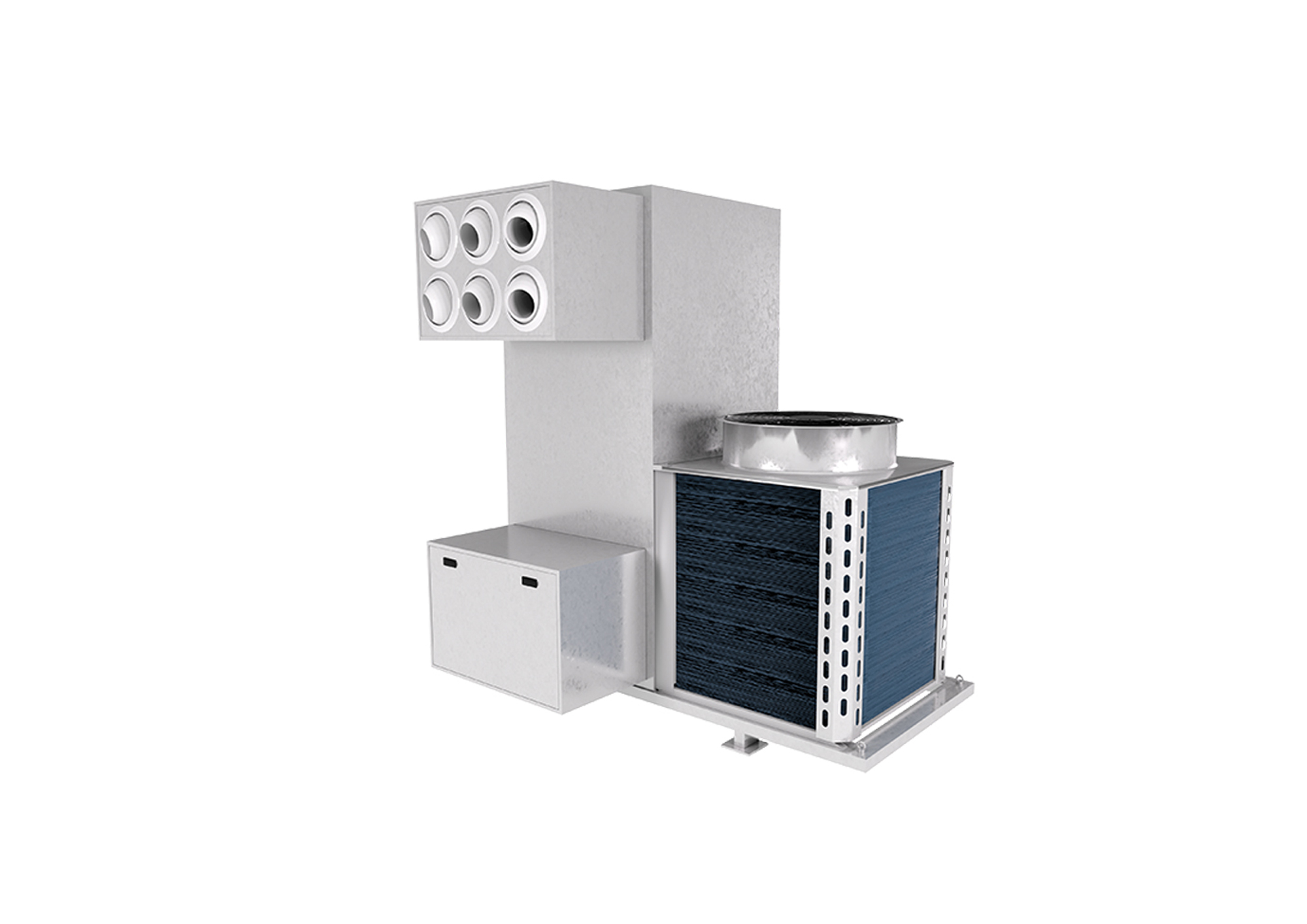

Factory Integrated Air Conditioning System

Applications: ideal for high and large space that needs cooling and heating. Combine the direct-expansion and multi-connected unit with the recirculated air heating and cooling unit and other indoor units and use R410A or R32A as the medium.

Model: AirTS-C55, AirTS-C72

Function: cooling, heating

Cold and hot source: R410A or R32A

Control mode: wireless control, variable frequency, auto monitoring

Quality Assurance

Stable and Durable.

After-sales Service

24H Online.

Inquire Now

Specification Inquire Now

Functions & Features

Support full AirTS products linkage control

Working data collection and analysis

Wireless intelligent control

R410A as the medium

Energy saving, lower investment

Light breeze air supply

Factory Integrated Air Conditioning System

Model		AirTS-C55	AirTS-ZC72
Standard circulating air volume	m³/h	0-8500	0-12000
Nominal cooling capacity (indoor 27℃ /outdoor 35℃ )	Kw	55	72
Nominal heating capacity (indoor 20℃ /outdoor 7℃ )	Kw	60	68
Nominal cooling input power (indoor 27℃ /outdoor 35℃ )	Kw	16.40	21
Nominal heating input power (indoor 20℃ /outdoor7℃ )	Kw	16.13	19
Indoor fan electrical power	A	1.6-3.1	2.5-2.8
Power supply (3phase, 5 wires)		3N-380V 50H	3N-380V 50H
Maximum fuse ampere (MFA)	A	65	85
Minimum circuit ampere (MCA)	A	52	82
Refrigerant		R410A/R32	R410A/R32
Applicable distance of lateral air supply	m	＞35	＞45
Control mode		VAV stepless regulation	VAV stepless regulation
Noise level outside	dB	＜72	＜74

*Select fuses or circuit breakers based on MFA, and select electrical wiring

specifications based on MCA.

*If the installation height is beyond the scope of application, please contact the

manufacturer to customize a non-standard model.

Direct Expansion Side Mounted Jet-flow Air Conditioning Unit

Unit size
Model		AirTS-C55	AirTS-C72
A	mm	2062	2410
B	mm	2340	2500
C	mm	1390	1430
D	mm	900	1100
E	mm	962	1110
F	mm	900	1100
G	mm	946	1095
H	mm	750	960
J	mm	750	960
K	mm	642	642
L	mm	642	642
M	mm	700	700
Weight	kg	436	571

※ For more materials and parameters of non-standard models, such as antiexplosion,

anti-corrosion, purification, copious cooling and other functional units, please consult our

regional sales personnel.
