What Is the Best HVAC System for a 1,000 m² High-Ceiling Workshop?

For a 1,000 m² workshop with a ceiling height above 4 meters, both VRF systems and chiller-based chilled-water systems can provide effective cooling and heating. The better solution depends on the actual cooling load, ceiling height, outdoor climate, operating schedule, zoning requirements, piping distance and future expansion plans.

A high-ceiling industrial workshop should not be treated like a conventional office building. Even when the cooling capacity is sufficient, poor air distribution can result in hot zones, cold zones and significant temperature stratification.

Air Distribution Is as Important as Cooling Capacity

In a high-ceiling workshop, warm air naturally rises and temperature stratification becomes more noticeable, especially during heating operation. Therefore, selecting the outdoor HVAC capacity is only part of the design. Indoor units, duct layout, air throw distance, return-air position and airflow direction must also be matched to the building height.

Depending on the workshop layout, high-static-pressure indoor units, long-throw air distribution or other industrial air-delivery solutions may be required to bring conditioned air effectively into the occupied zone.

Why Ceiling Height Changes HVAC Selection

In a workshop with a 4–10 m ceiling, HVAC selection must consider both:

· Required cooling and heating capacity

· Airflow and effective air distribution in the occupied zone

Industrial equipment, lighting, workers, roof insulation, fresh air and frequently opened doors can also significantly affect the real HVAC load.

VRF or Chiller?

VRF System

A VRF solution connects industrial indoor units directly to refrigerant outdoor units.

It can be attractive when:

· Independent zone control is required

· Installation needs to be relatively simple

· No existing chilled-water network is available

· The project will be completed in phases

Chiller + Water Indoor Units

A chilled-water solution uses an air-cooled chiller or heat-pump chiller to supply chilled or hot water to industrial indoor units.

It may be preferred when:

· A centralized water system is desired

· The factory has a large cooling load

· Long water piping networks are required

· A chilled-water plant already exists

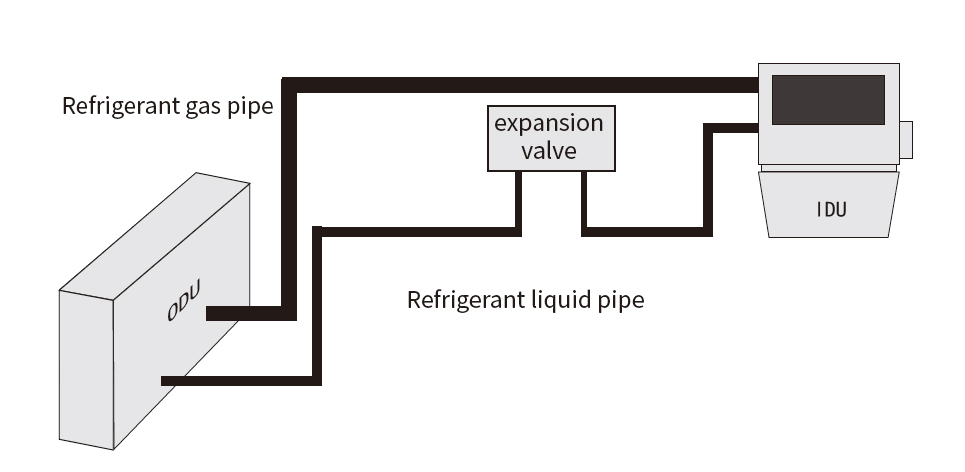

VRF refrigerant piping schematic diagram

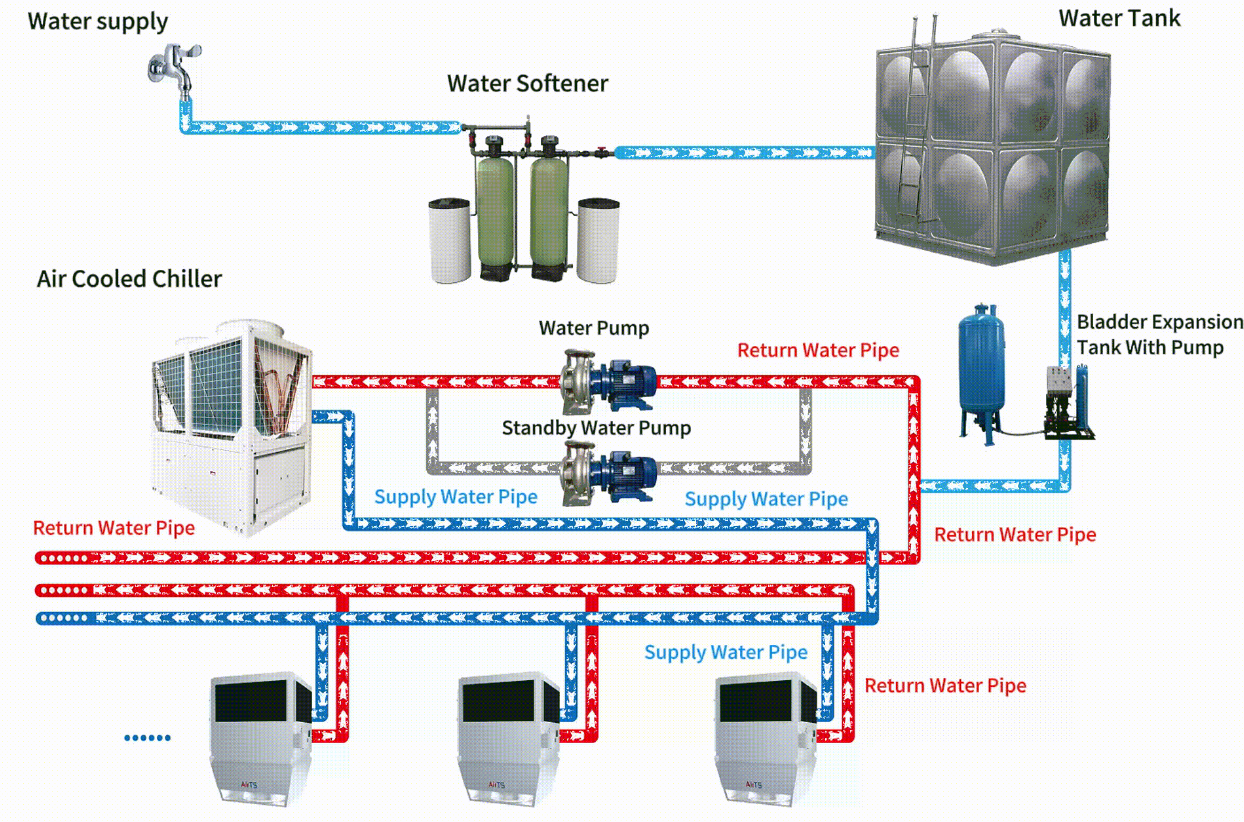

Chiller water piping schematic diagram

Which One Should You Choose?

For many standalone 1,000 m² workshops, VRF is often the more practical option when zoning flexibility, simpler installation and independent temperature control are priorities. A chilled-water system may be more suitable when the workshop has a high continuous cooling load, long piping distances, an existing central chilled-water plant, or plans for larger-scale expansion.

However, floor area alone is not enough to determine the final HVAC system. For a 1,000 m² high-ceiling workshop, system selection should be based on actual heat load, airflow requirements, ceiling height and building layout. AirTS provides both refrigerant-based VRF systems and chilled/hot-water HVAC solutions for high and large spaces, allowing the system configuration to be matched to the specific project conditions.

Choose VRF When:

· The workshop is divided into multiple operating zones.

· Different areas require independent temperature control.

· Installation space for pumps and water systems is limited.

· The project will be expanded in stages.

· Moderate piping distances are sufficient.

Choose a Chilled-Water System When:

· Cooling demand is large and continuous.

· A central HVAC plant already exists.

· Multiple workshops or buildings need centralized cooling.

· Long piping distances are required.

· Future plant expansion is expected.

FAQ

How many kW are needed for a 1,000 m² workshop?
A preliminary estimate can be made from area, but final capacity should be based on a heat-load calculation.

Can one system provide cooling and heating?
Yes. A heat-pump VRF or heat-pump chiller can provide both, subject to the required outdoor operating conditions.

Is VRF suitable for a workshop with an 8–10 m ceiling?
Yes, but ceiling height alone does not determine suitability. Indoor-unit selection and air-distribution design become increasingly important as ceiling height increases.

Does a high-ceiling workshop need more HVAC capacity?
Not necessarily based on ceiling height alone. Heat gain from the roof, machinery, ventilation, occupants and outdoor conditions usually has a greater influence on the calculated cooling load.

What information is needed to select a workshop HVAC system?
Floor area, ceiling height, location, insulation, equipment heat load, fresh-air requirement, operating hours, indoor design temperature and workshop layout should all be considered.

Send AirTS your workshop dimensions, ceiling height, city, required indoor temperature and layout for preliminary HVAC selection.
