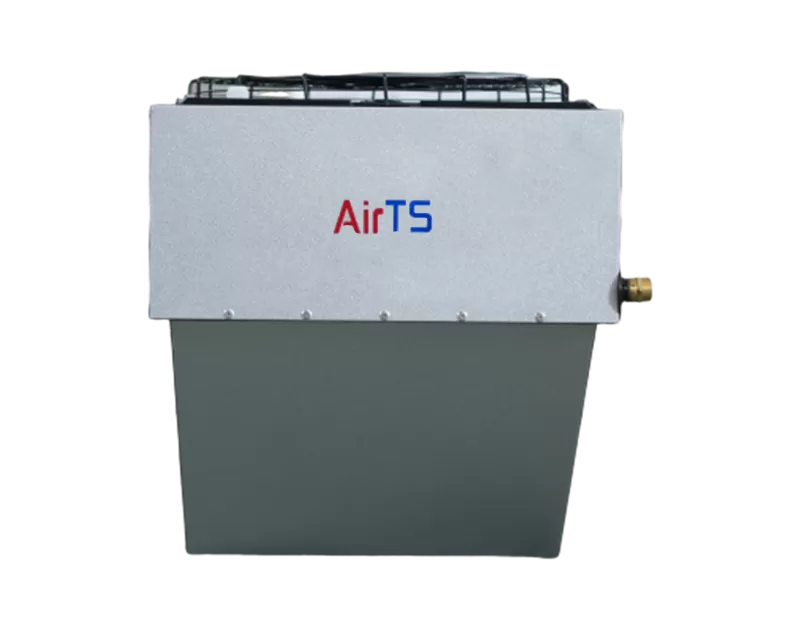

AirTS-M
Function: heating, air curtain
Hot source: hot water (40-90℃) /steam (<120℃)
Control mode: wireless control, variable frequency, auto monitoring
Quality Assurance
Stable and Durable.
After-sales Service
24H Online.
Advantages
A hot gate air curtain is an industrial air barrier device installed above or beside large door openings. It generates a high-velocity heated air stream that forms an invisible “air wall,” preventing the exchange of cold and hot air between indoor and outdoor environments.
Unlike traditional door systems, industrial air curtain heater allows unrestricted vehicle and personnel movement while maintaining indoor climate stability.
High-efficiency heated air barrier for large industrial openings
Compatible with hot water or steam heating systems
Reduces indoor energy loss caused by frequent door opening
Blocks dust, insects, fumes, and outdoor pollutants
Suitable for door heights up to 7 meters or more
Strong airflow performance for high-traffic entrances
Durable industrial-grade steel housing for long-term use
Low operating noise and stable performance
Airts Hot gate air curtain systems provide clear advantages:
More energy-efficient than open-door ventilation
More flexible than mechanical doors or shutters
More durable than PVC strip curtain systems
Better airflow control for high-traffic industrial entrances
Improved indoor air quality and temperature stability
Working principle
The air curtain machine produces high-speed air flow to divide the interior and exterior into two independent temperature areas to create the comfortable indoor environment and keep the effect of indoor air conditioning and air purification.
Industrial Heated Air Curtain circulates the air and effectively isolates dust, exhaust gas, bad smell, inset and other germs while saving electricity. Prevent cool air (heat) from escaping, save electricity to form the air door to effectively prevent cool air (heat) from leakage.
For saving electricity, the air curtain machine divides the interior and exterior into two independent temperature areas, and adjusting the temperature when the air conditioning is running for a long time, so as to save energy and improve the environment.
It has the effect of dust prevention and insect prevention. The industrial air curtain heater generates a highspeed air flow to form a protective door to effectively prevent the invasion of outdoor dust and winged insect and keep indoor clean.
Hot Gate Air Curtain Units has the effect of smoke and harmful gases prevention. The air circulation system of air curtain machine can make every corner of the room block the drift of cooking fume and biting taste, and prevent the invasion of industrial waste gas, automobile exhaust and other harmful gases. It has the air circulation effect.
If air conditioning energy in stadium, cinema or entertainment venue is unevenly distributed due to large space, the air circulation system of heated air curtain for large door can balance indoor temp.
Super strong isolation
Effectively isolate outdoor cooking fume and toxic gas, and also isolate odor gas into or out.
Dust prevention and insect prevention
Effectively prevent outdoor dust, outdoor mosquito, fly and other insect pests.
Heating and constant temperature
With high safety performance,the air curtain machine can balance the distribution of indoor temperature when temperature is rapidly rising.
Environmental protection and energy saving
The air curtain is divided into two areas to invisibly block the outflow of indoor hot and cold air.
Functions
Fall prevention warning monitoring
Working data collection and analysis
Wireless intelligent control
Variable air volume and water volume
Frost protection
Filter net self-cleaning
Dust and insect prevention
Heating and constant temperature
Specification
| Top-blowing Gate Air Curtain | ||
| Model | AirTS-M | |
| Rotating speed of fan | r/min | 1300 |
| Standard circulating air volume | m³/h | 5800 |
| Voltage | V | 380±5% |
| Electric power | kW | 0.79 |
| Current | A | 1.45 |
| Suitable installation height | m | ＜7 |
| Noise | dB | <50 |
| Dimension | ||
| Model | AirTS-M | |
| A | mm | 720 |
| B | mm | 860 |
| C | mm | 430 |
| D | mm | DN25 (internal thread) |
| E | mm | 400 |
| F | mm | 60 |
| G | mm | 160 |
| K | mm | 280 |
| Weight | kg | 65 |
| Water volume | L | 2.9 |
Application
Industrial hot gate air curtain units are high-performance air barrier systems designed for large entrances such as factories, warehouses, logistics centers, and industrial halls. By combining powerful airflow with hot water or steam heating systems, they effectively separate indoor and outdoor environments while maintaining stable indoor temperature and air quality.
Hot gate air curtain units are widely used in:
Industrial factory entrances
Warehouse loading docks
Logistics distribution centers
Food processing plants
Cold storage facilities
Automotive workshops
Large exhibition halls and hangars
High-frequency cargo entry points
Q1: What door height is suitable for this air curtain?
It is typically suitable for openings up to 7 meters, with custom solutions available for higher entrances.
Q2: What heating source does Industrial Heated Air Curtain use?
It supports hot water and steam heating systems depending on facility configuration.
Q3: Can it run continuously in industrial environments?
Yes, it is designed for continuous operation in high-traffic industrial applications.
Q4: Does hot air curtain uni help reduce energy costs?
Yes, hot air curtain uni significantly reduces HVAC energy loss caused by frequent door opening.
Q5: Can it be customized?
Yes, airflow, size, heating type, and control systems can be customized.
Looking for a reliable air barrier solution for large industrial doors?
We provide tailored engineering design, technical support, and full customization for your project.
Contact us today to get a free technical proposal and quotation.
